Redleaf SOM-3 Smartphone Mounting Adapter for Scopes and Telescopes
Redleaf
| Products ID: | 193390 |
|---|---|
| Manufactured by: | Redleaf |
| Availablity: | SOLDOUT! |
| EAN: | 5907489647588 |
Delivery options to:
Choose country

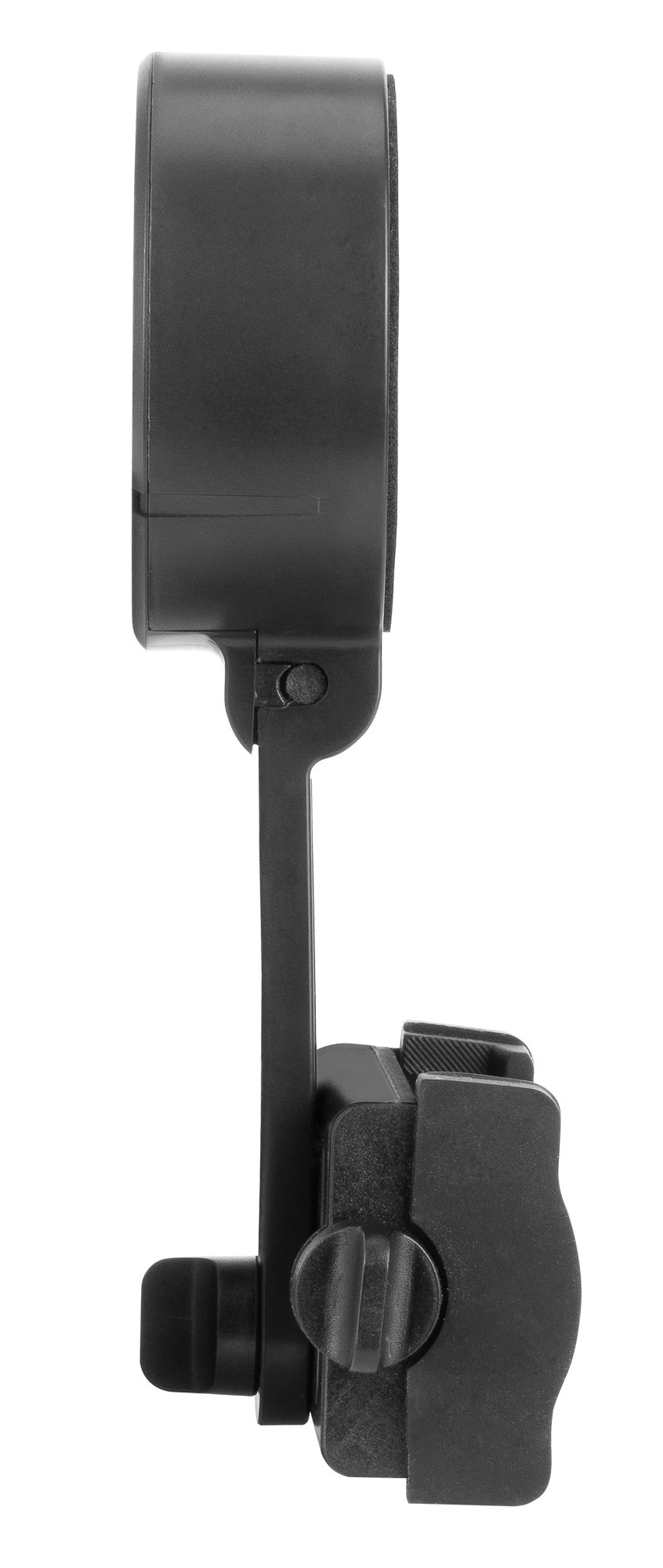

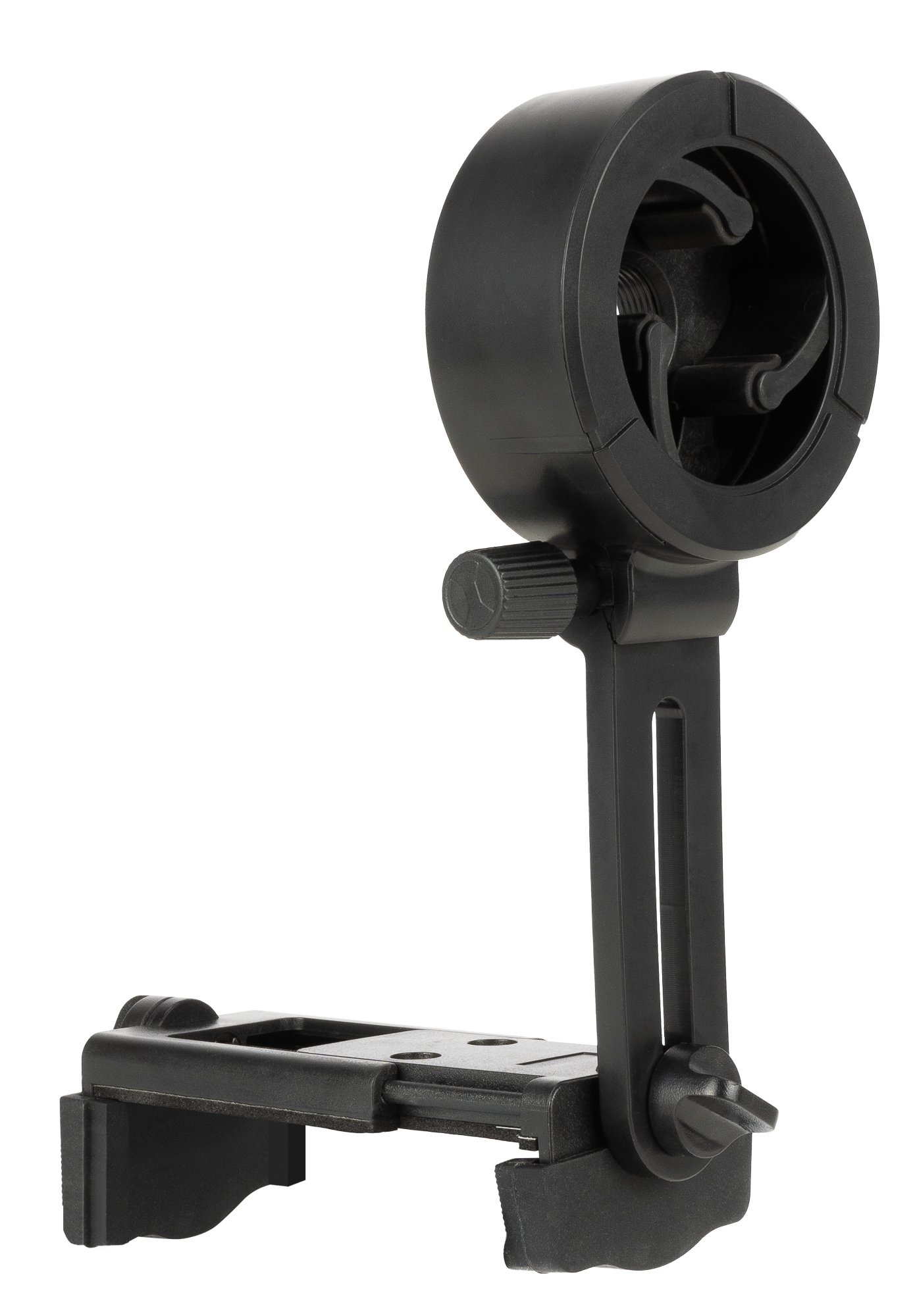

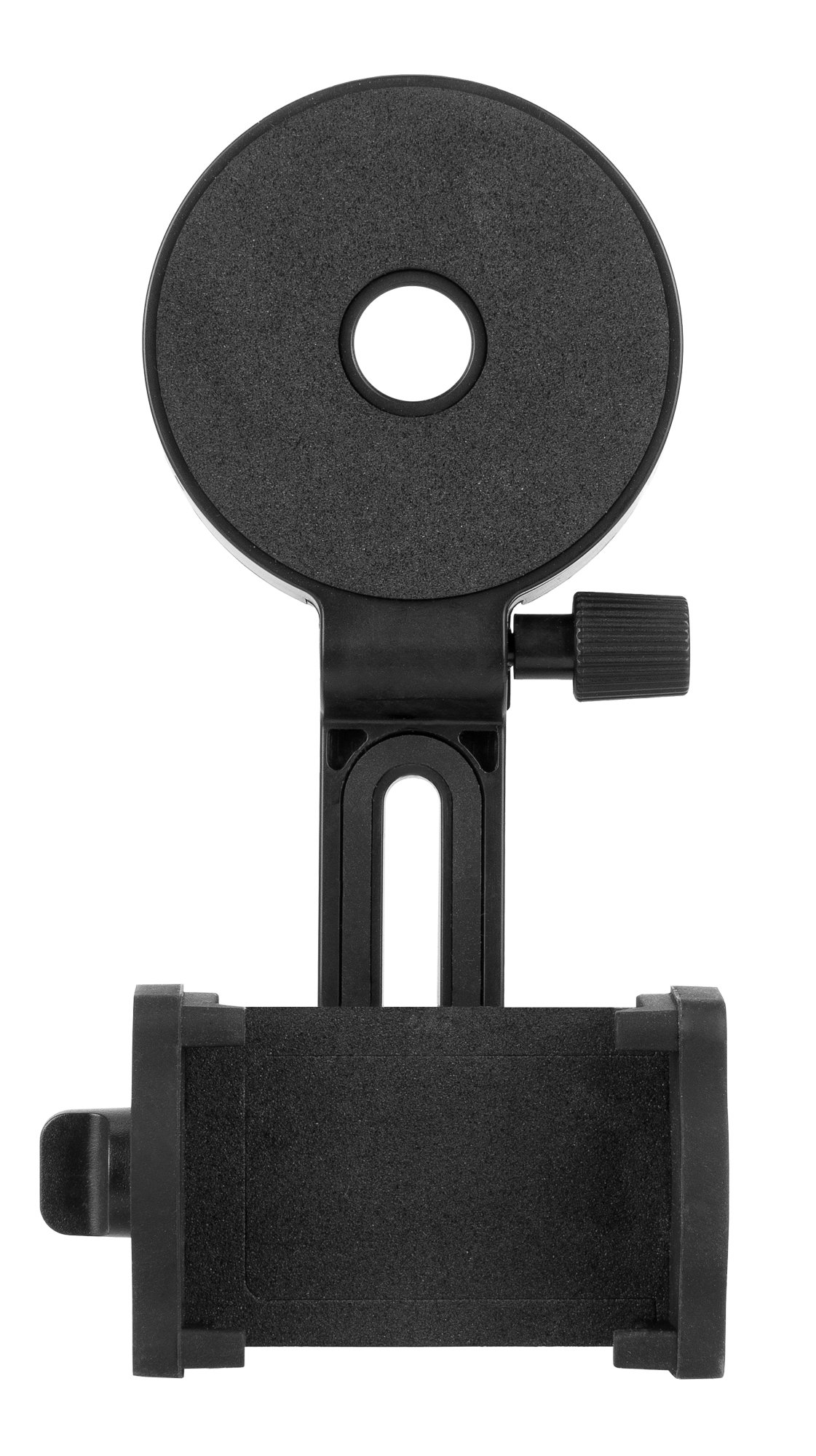

The Redleaf SOM-3 adapter is designed to mount smartphones onto spotting scopes, telescopes, microscopes, binoculars, and monoculars. It enables you to capture photos, record videos, or use your phone display as a live view screen while observing through optical devices.
Adjustable and Protective Design
Integrated adjustment knobs allow precise positioning of the smartphone camera lens right in front of the optical instrument's eyepiece. Rubber and foam paddings help secure the gear and protect surfaces from scratches.
- Fits smartphones with a width of 55.9 to 99 mm
- Eyepiece clamp adjustment range from 22.3 mm to 47.8 mm
- Protective rubber finish on the eyepiece clamp
- Protective foam padding on the phone mount
- Two 1/4" threads for mounting on a tripod or attaching accessories
Versatile Applications
Constructed from durable plastic, this adapter is well-suited for astrophotography, documenting microscopic samples in biology, and capturing wildlife observations through binoculars in home, school, or professional settings.
| Model | Redleaf SOM-3 |
|---|---|
| Color | Black |
| Smartphone width range | 55.9–99 mm |
| Eyepiece clamp range | 22.3–47.8 mm |
| Mounting threads | 2 x 1/4" |
| Material | Plastic, rubber, foam |
| Dimensions | 142 x 86 x 50 mm |
| Weight | 130 g |
What phone sizes are supported by this adapter?
The smartphone clamp accommodates phones with a width ranging from 55.9 mm to 99 mm.
Which eyepiece diameters will this adapter fit?
The eyepiece clamp is adjustable to fit optical eyepieces measuring between 22.3 mm and 47.8 mm in diameter.
Can the adapter be mounted on a tripod?
Yes, it features two standard 1/4" threads for attaching to a tripod or connecting accessories.
