Redleaf Solar Panel for RD3019 Pro Trail Camera, 4500 mAh
Redleaf
| Products ID: | 194831 |
|---|---|
| Manufactured by: | Redleaf |
| Availablity: | SOLDOUT! |
| EAN: | 5901891102666 |
Delivery options to:
Choose country

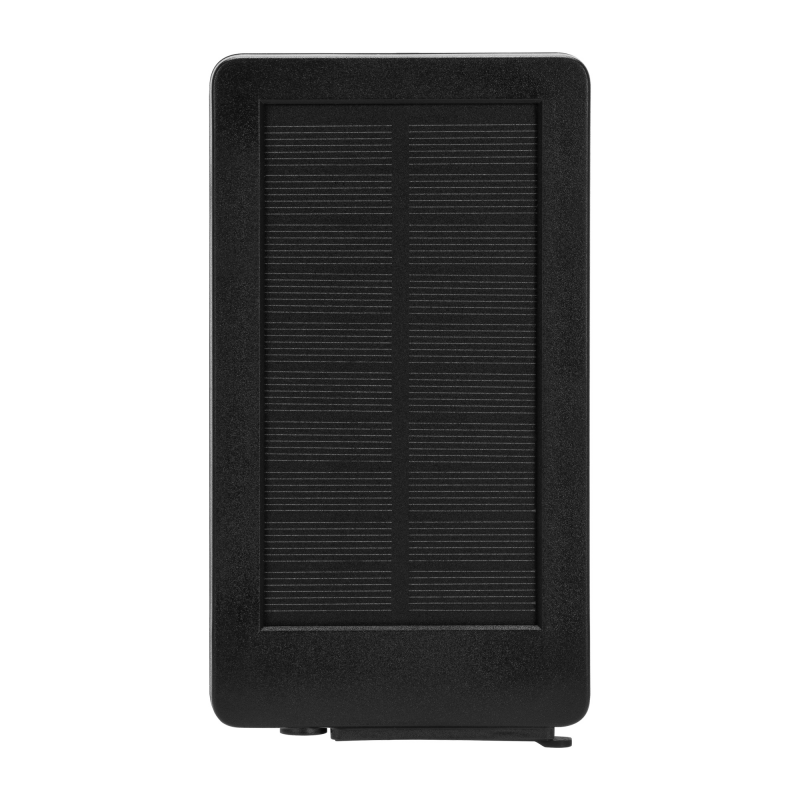

The Redleaf solar panel provides a reliable external power source for the Redleaf RD3019 Pro trail camera, significantly extending field operation time and reducing standard battery consumption.
Integrated Battery and Power Delivery
Equipped with a 4500 mAh (3.7 V) lithium-ion battery, the unit charges via sunlight at approximately 200 mA. When connected, the trail camera draws power from the panel first, automatically switching to internal AA or NiMH batteries if the panel's charge drops below minimum. Users can also pre-charge the battery via the Micro USB port within up to 4 hours using the included cable.
Mounting and Durability
Built to operate in harsh conditions, the panel features an IP54 weather-resistance rating and a working temperature range of -20°C to 80°C. An adjustable mounting bracket allows precise positioning on trees or walls for optimal sunlight capture, while 4 LED indicators clearly display remaining battery capacity in 25% increments.
| Compatibility | Redleaf RD3019 Pro trail camera |
|---|---|
| Output Voltage and Current | 6 V / 2 A or 12 V / 1 A |
| Battery Capacity | 4500 mAh (3.7 V) |
| Output Interface | DC socket |
| USB Charging Port | Micro USB (5 V / 1 A) |
| Power Indicators | 4 LEDs |
| Solar Charging Current | approx. 200 mA |
| Charging Time | up to 4 hours |
| Operating Temperature | -20 – 80 °C |
| Certifications | CE, FCC, ROHS, IP54 |
| Solar Panel Dimensions | 120 x 65 mm |
| Overall Dimensions | 153 x 85 x 26 mm |
| Weight | 178 g |
What is included in the package?
The kit includes the solar panel, a DC cable, a Micro USB / USB-A cable, and a wall mount.
How does the battery level indicator work?
The panel features 4 LEDs, each representing 25% of the total charge level.
Can the panel be charged before deployment?
Yes, you can pre-charge the built-in battery via the Micro USB port (5 V / 1 A) in up to 4 hours.
