Newell Wattmeter Electricity Consumption Meter
Newell
| Products ID: | 193953 |
|---|---|
| Manufactured by: | Newell |
| Availablity: | SOLDOUT! |
| EAN: | 5901891103588 |
Delivery options to:
Choose country
The Newell wattmeter is a plug-in monitoring device designed to track electricity consumption and running costs of appliances in homes, offices, workshops, or rental spaces. It connects directly between the wall socket and your device for real-time electrical monitoring.
Precise Measurements and Energy Cost Tracking
This meter monitors active power (W), current (A), voltage (V), and mains frequency, as well as total energy consumption in kilowatt-hours (kWh). By entering your local electricity rate per kWh, the unit automatically calculates operating expenses alongside total device run time.
Convenient Controls and Overload Warning

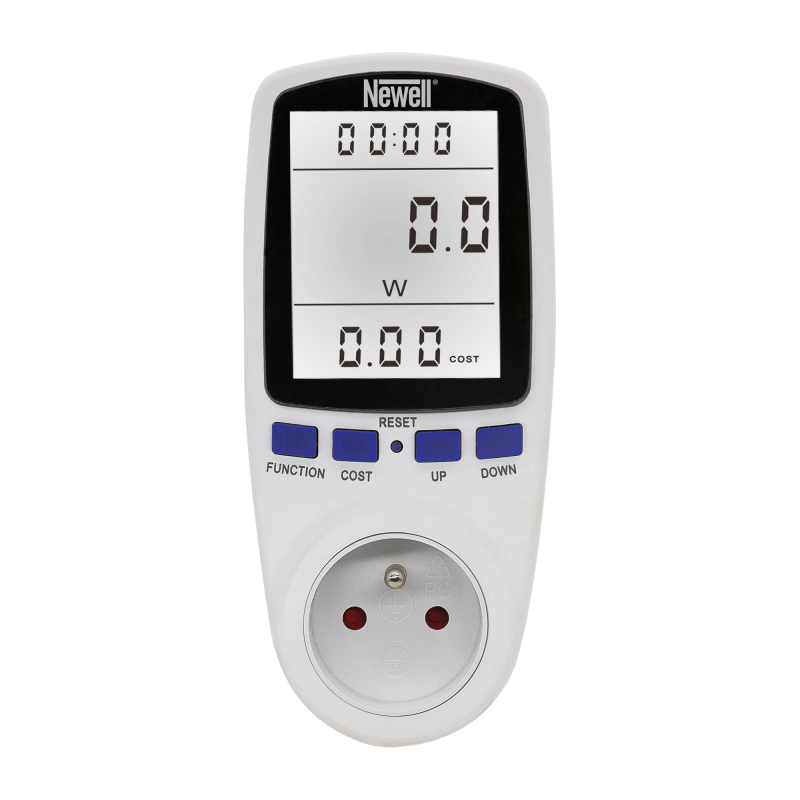

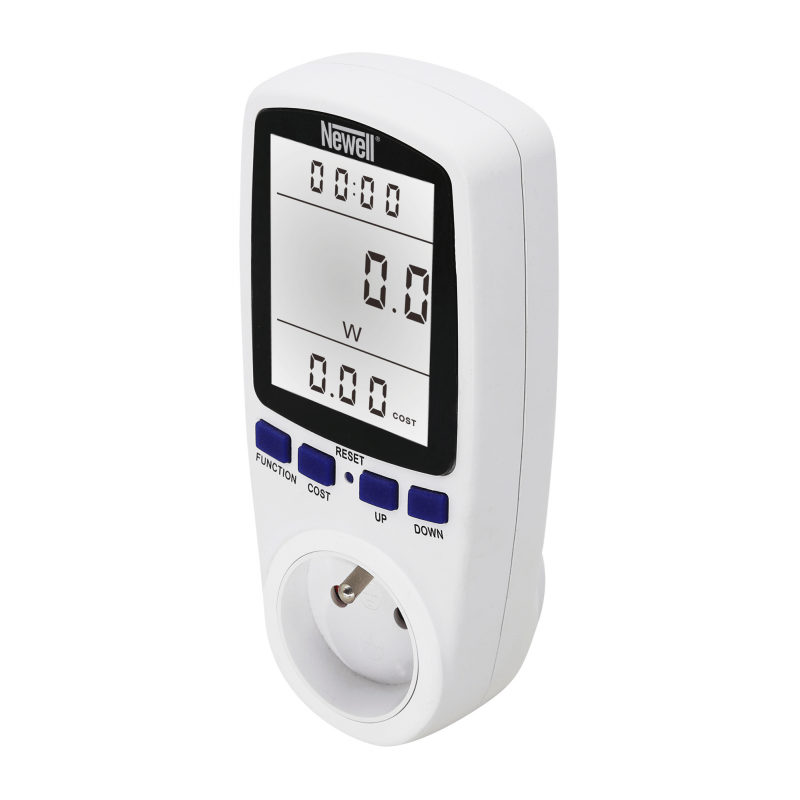

Featuring a backlit LCD screen and four tactile buttons, the wattmeter provides clear parameter readouts day or night. It includes an integrated OVERLOAD visual alert that triggers if current exceeds 16 A or load power surpasses 3680 W, helping prevent damage to connected devices.
- Backlit LCD display for clear data readouts
- Measures power, voltage, current, and line frequency
- Calculates cumulative energy usage and total cost
- Overload alarm warning above 16 A or 3680 W

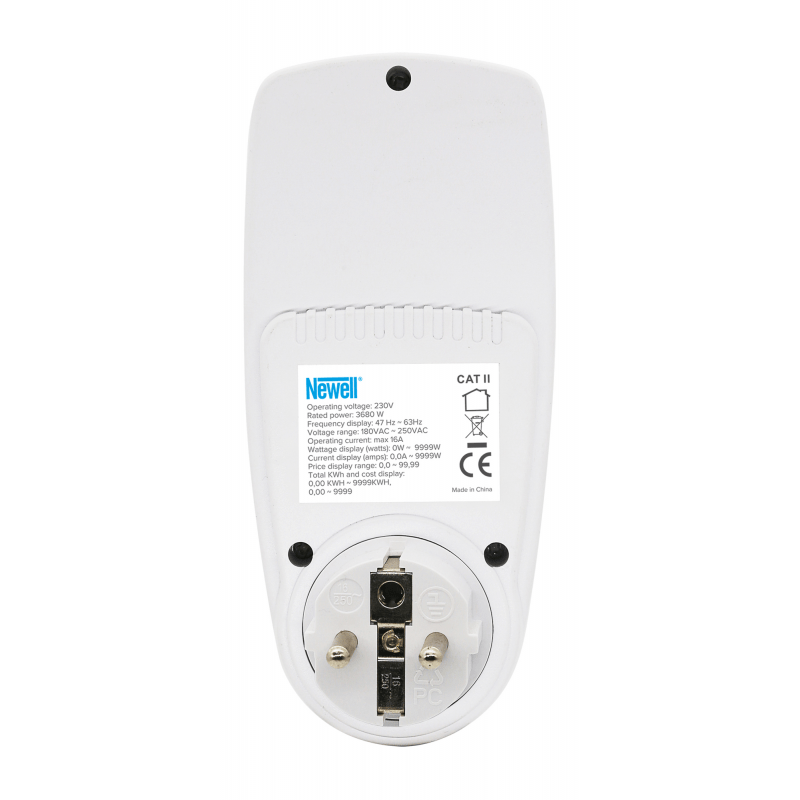

- Built with a type E socket and type F plug
| Model | Newell wattmeter |
|---|---|
| Operating voltage | 180 VAC - 250 VAC |
| Voltage frequency | 47 Hz - 63 Hz |
| Operating temperature | 0 - 40 ºC |
| Operating current | 16 A |
| Measurement accuracy | + 2% |
| Voltage display range | 0.0 V - 9999 V |
| Current display range | 0.000 A - 65.00 A |
| Power display range | 0.0 W - 9999 W |
| Frequency display range | 0 - 999 Hz |
| Power factor | 000 - 1.00 |
| Electricity display range | 0.000 KWh - 9999 KWh |
| Unit price range | 0.00 - 99.99 |
| Electricity charge range | 0.00 - 9999 |
| Dimensions | 69 x 157 x 77 mm |
| Weight | 189 g |
When does the overload alarm activate?
The OVERLOAD icon appears on the screen whenever the connected load current exceeds 16 A or power exceeds 3680 W.
What socket and plug types are integrated into this wattmeter?
The meter is equipped with a type E socket and a type F plug.
What is the manufacturer warranty period?
The device comes with a 40-month manufacturer warranty.
