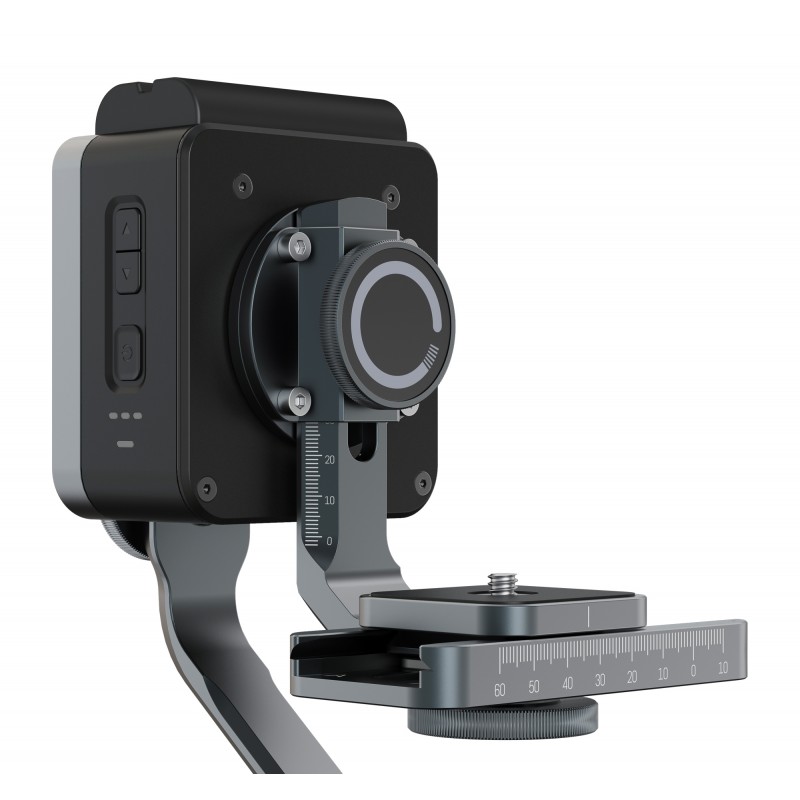

Motorized Pan Tilt Head Zeapon Pons PT
Zeapon
| Products ID: | 195149 |
|---|---|
| Manufactured by: | Zeapon |
| Availablity: | SOLDOUT! |
| EAN: | 6970684670681 |
Delivery options to:

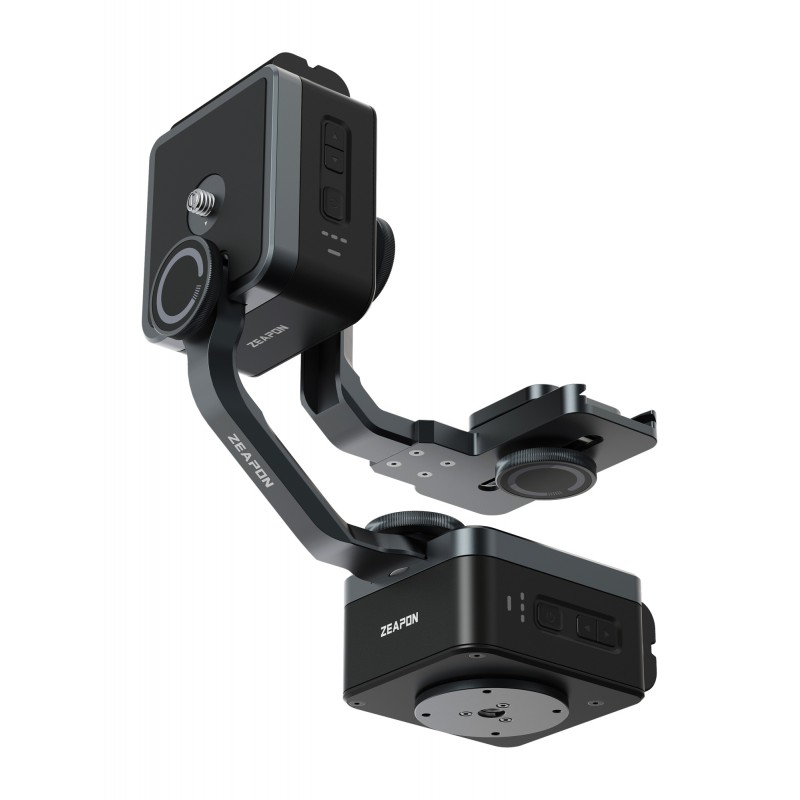

Choose countryThe Zeapon Pons PT Motorized Pan Head is a two-axis motion control system comprising two electronic Pons Motorised Pan Head modules and a Pons Tilt Arm Kit. It enables automated camera movement across both pan and tilt planes.
Movement Programming and Shooting Modes
The system lets you configure up to 6 camera positions in a single movement sequence. It supports full 360-degree rotation along the lens axis, complex multi-row panoramic matrix photography, and automated timelapse capture.
Design and Practical Expandability

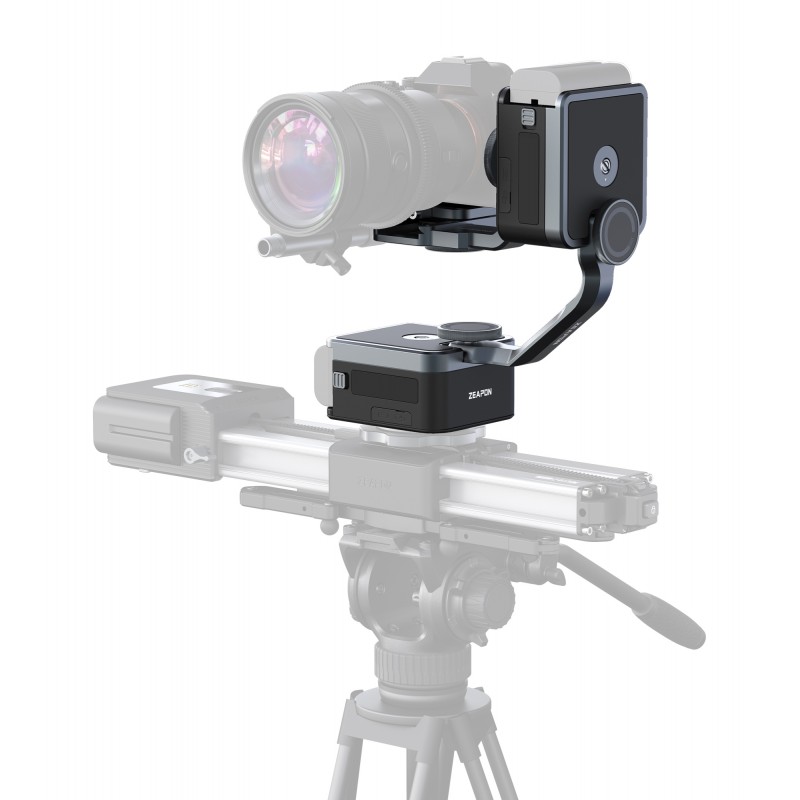

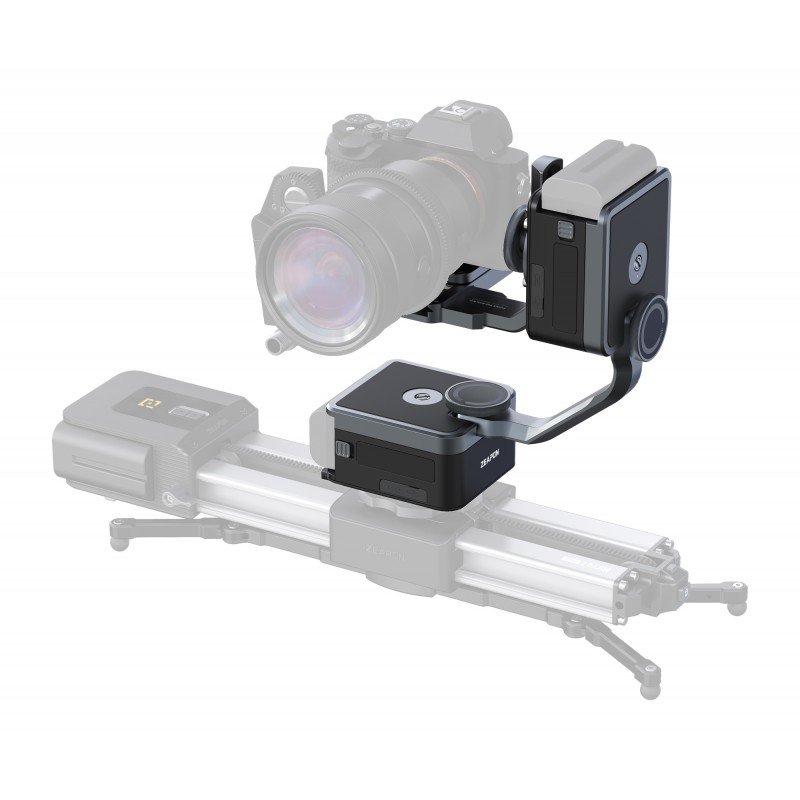

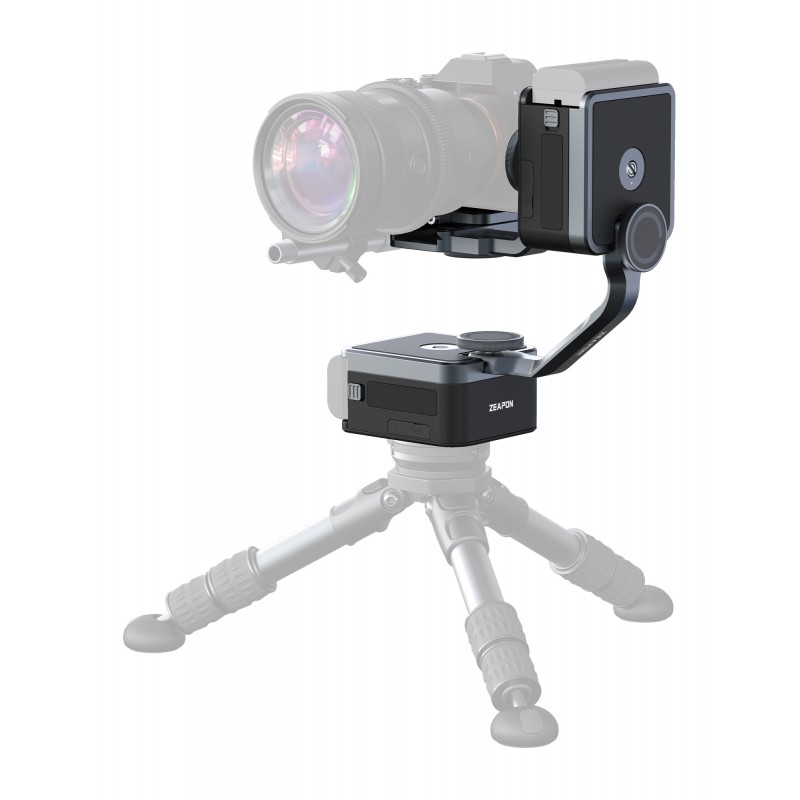

Each module features an integrated 1/4" to 3/8" male thread adapter that can be fully retracted into the housing. When concealed, the module surface acts as a 360-degree motorized turntable for product photography. The kit mounts to standard tripods and pairs seamlessly with the Zeapon Micro 2 Plus slider.
Controls and Power Supply
Movement can be controlled using physical buttons or via Bluetooth using the Zeapon Lab mobile application for iOS and Android. Each head module is powered by popular NP-F series batteries or via a USB-C Power Delivery port.
| Model | Zeapon Pons PT Motorized Pan Head |
|---|---|
| Material | Aircraft aluminium alloy, polycarbonate |
| Input | 5 V / 2 A |
| Mobile application | Zeapon Lab (iOS / Android) |
| Connectivity | Bluetooth |
| Max load capacity in vertical position | 4 kg |
| Max load capacity in horizontal position | 50 kg |
| Average rotation speed | 9°/s (full rotation: 40 s) |
| Minimum rotation speed | 4°/s (full rotation: 90 s) |
| Power supply | NP-F batteries, USB-C (Power Delivery protocol) |
| Operating time with NP-F550 | 3 h |
| Operating time with NP-F970 | 12 h |
| Noise level | Up to 39 dB |
| Dimensions | 205 x 235 x 125 mm |
| Weight | 2026 g |
| Package contents | 2 x Pons Motorised Pan Head, Pons Tilt Arm Kit |
What is the maximum payload capacity of the Zeapon Pons PT?
The system supports up to 50 kg in a balanced horizontal position and up to 4 kg in a vertical position.
Which batteries are compatible with the modules?
The heads are compatible with standard NP-F batteries (such as NP-F550, NP-F750, and NP-F970) and can also be powered via USB-C.
What is included in the kit?
The kit includes 2 Pons Motorised Pan Head modules and 1 Pons Tilt Arm Kit.
