Macro Lens Laowa Periprobe Cine 24mm f/14 2:1 for Arri PL Mount
Laowa
| Products ID: | 194023 |
|---|---|
| Manufactured by: | Laowa |
| Availablity: | SOLDOUT! |
| EAN: | 6940486702132 |
Delivery options to:

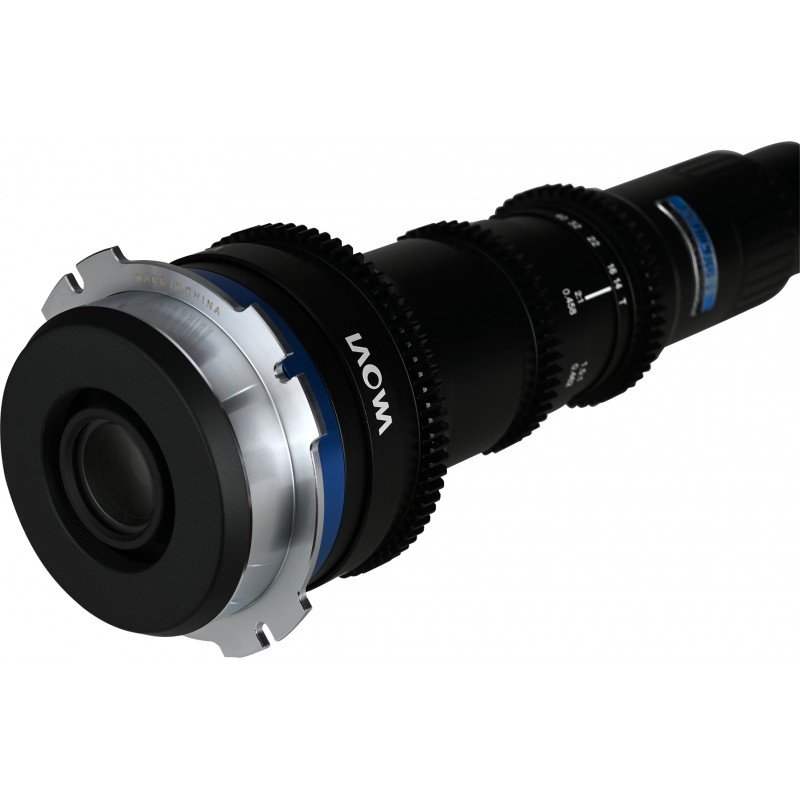

Choose countryThe Venus Optics Laowa Periprobe Cine 24mm f/14 Macro 2:1 is a full-frame cine macro lens for Arri PL mount, engineered for unique perspectives and filming in tight spaces.
Periscope and Straight Optical Tubes

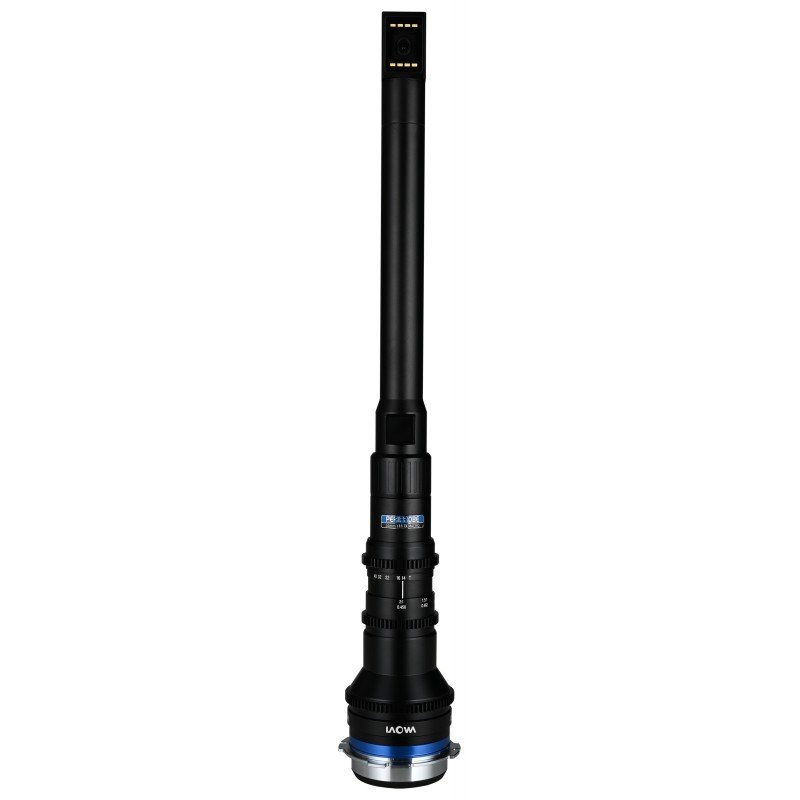

Built with an elongated 40 cm barrel, the lens includes two interchangeable front optical elements: a 90° periscope tube and a straight 0° tube. The periscope tube can rotate 360° along its axis to capture low-angle and tight-clearance shots. A 1/4" mounting thread at the tip allows attachment of accessories such as small lights or microphones.
Macro Reproduction and Optical Design
With a minimum focusing distance of 2 cm, the lens provides a 2:1 (2x) magnification scale and focuses continuously to infinity. Its 24mm focal length yields an 85° angle of view on full-frame sensors. The optical configuration comprises 28 elements organized into 19 groups with a 7-blade iris.
Cine Ergonomics, Built-In LEDs, and Protection
- Focus and aperture rings feature standard 0.8 MOD gearing for integration with follow focus gear systems.
- Stepless aperture ring enables smooth, quiet adjustments during video capture.

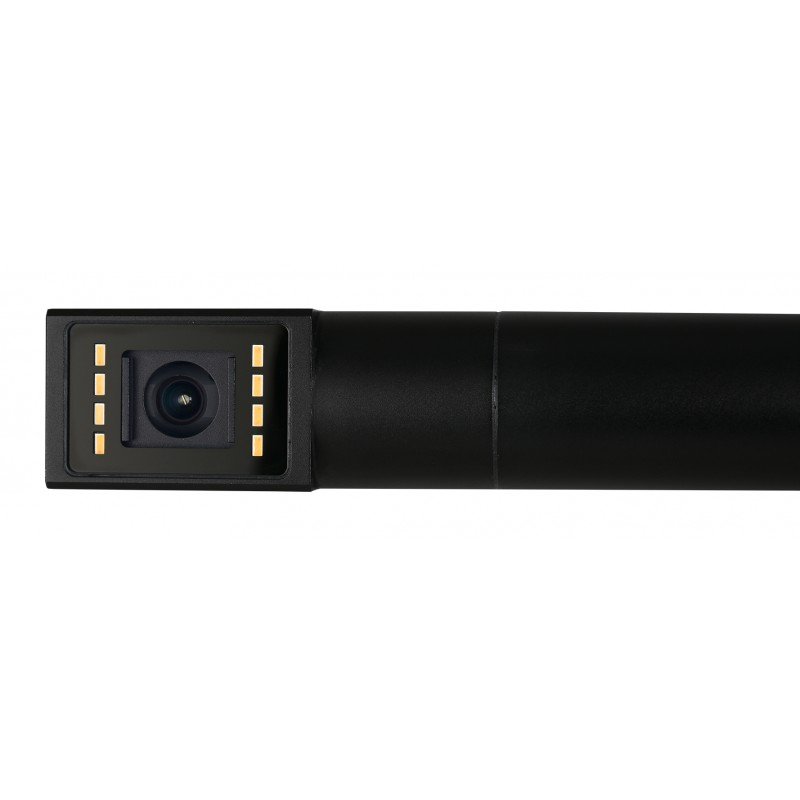

- Front-mounted LED ring light powered via the included USB cable, complete with an in-line brightness controller.
- Sealed front element resists water immersion, splashes, and dust.
- Supplied with a professional protective transport case equipped with combination locks.
| Model | Venus Optics Laowa Periprobe Cine 24 mm f/14 Macro 2:1 for Arri PL |
|---|---|
| Mount | PL |
| Focal length | 24 mm |
| T-Stop range | T14 - T40 |
| Angle of view | 85° |
| Optical construction | 28 elements in 19 groups |
| Focusing | Manual |
| Image coverage | Full frame |
| Number of aperture blades | 7 |
| Minimum focusing distance | 2 cm |
| Max. focus distance | Infinity |
| Max. reproduction | 2 x |
| Filter thread | None |
| Dimensions | Ø61.3 x 404 mm |
| Weight | 770 g |
What front optical tubes are included in the package?
The package includes both a 90° periscope front tube and a straight 0° front tube.
How is the integrated LED ring light powered?

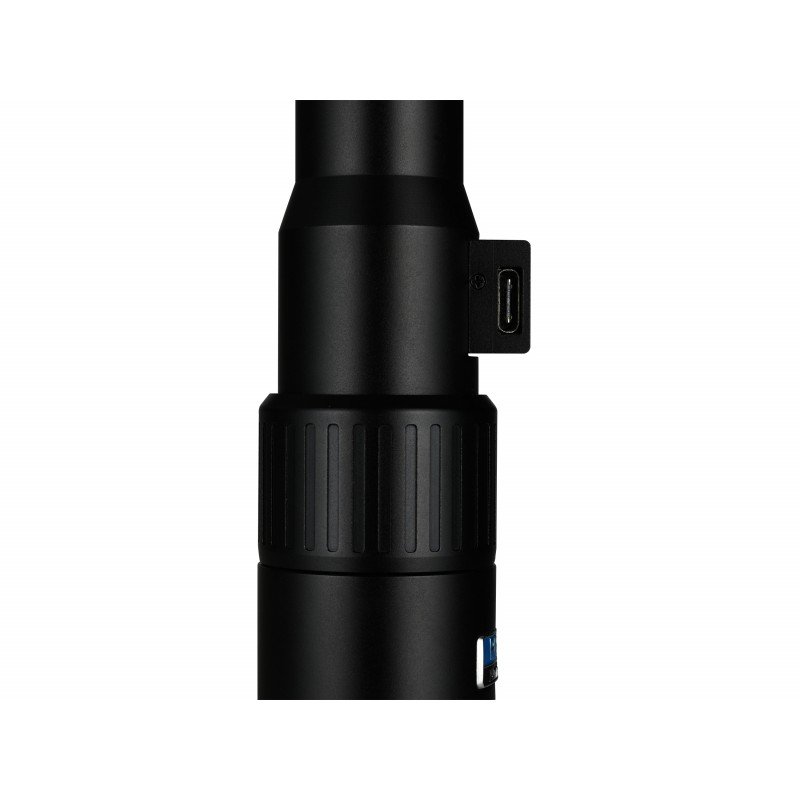

The integrated LEDs are powered through the included USB Type-C to USB cable connected to an external power source, such as a power bank.
Can the front element of the lens be submerged in water?
Yes, the front barrel element is sealed to withstand water immersion and splashes.
