Laowa Nanomorph 27mm, 35mm, 50mm S35 Blue Cine Lens Kit for Arri PL / Canon EF
Laowa
| Products ID: | 194025 |
|---|---|
| Manufactured by: | Laowa |
| Availablity: | SOLDOUT! |
| EAN: | 6940486703856 |
Delivery options to:
Choose countryThe Venus Optics Laowa Nanomorph lens kit includes three compact anamorphic cinema lenses (27mm T2.8, 35mm T2.4, and 50mm T2.4) engineered for filmmakers shooting on Super 35 sensors with Arri PL or Canon EF mounts.
Cinematic 1.5x Anamorphic Squeeze and Blue Flares
Each lens delivers a 1.5x horizontal squeeze ratio, producing a cinematic 2.4:1 widescreen aspect ratio on standard 16:9 sensors. The Blue variant produces distinctive cool horizontal lens flares alongside classic oval bokeh. All three lenses share an optical formula of 15 elements in 13 groups and utilize a 13-blade aperture design.
Interchangeable Mounts and Follow Focus Ready
Interchangeable bayonets allow mounting directly to Arri PL or Canon EF systems without optical adapters. Both focus and aperture rings feature standard 0.8 MOD cine gears in uniform positions across the series. With front diameters of 80mm, 77mm filter threads, and lengths under 7.5 cm, these lenses balance easily on gimbals, sliders, drones, and handheld rigs.
| Sensor Coverage | Super 35 (25.6 x 16 mm) |
|---|---|
| Lens Mount | Arri PL / Canon EF (interchangeable bayonets included) |
| Anamorphic Squeeze Ratio | 1.5x |
| Flare Color | Blue |
| Filter Thread | 77 mm |
| Front Diameter | 80 mm |
| Aperture Blades | 13 |
| Optical Design (each lens) | 15 elements in 13 groups |
| Gear Pitch | 0.8 MOD |

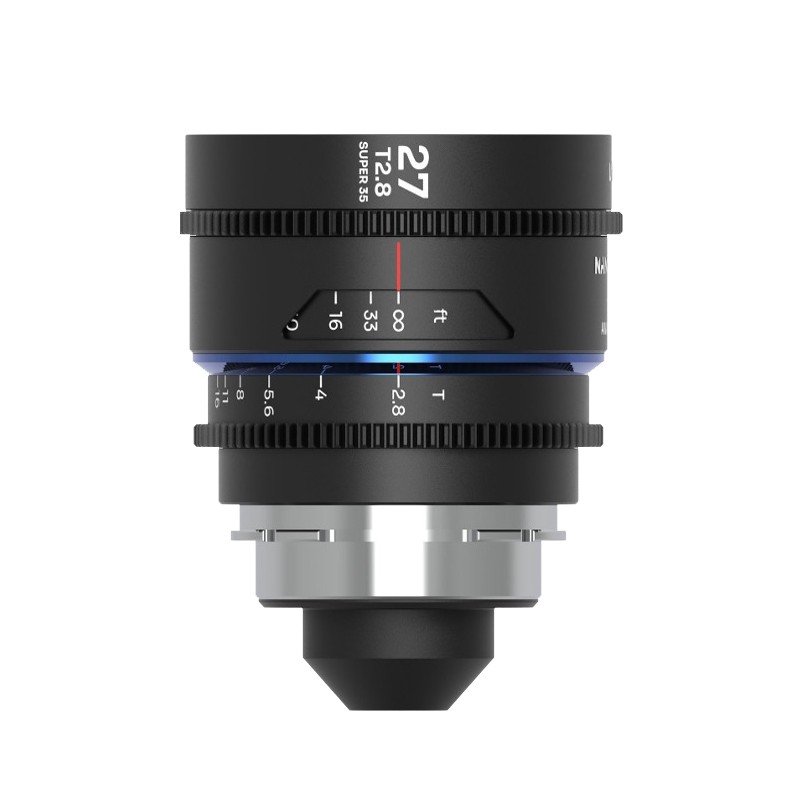

| 27mm Focal Length & Aperture | 27 mm, T2.8 - T16 |
| 27mm Angle of View (H / V) | 70.8° / 33° |
| 27mm Minimum Focusing Distance | 43 cm |
| 27mm Dimensions & Weight | Ø84 x 67 mm, 490 g |

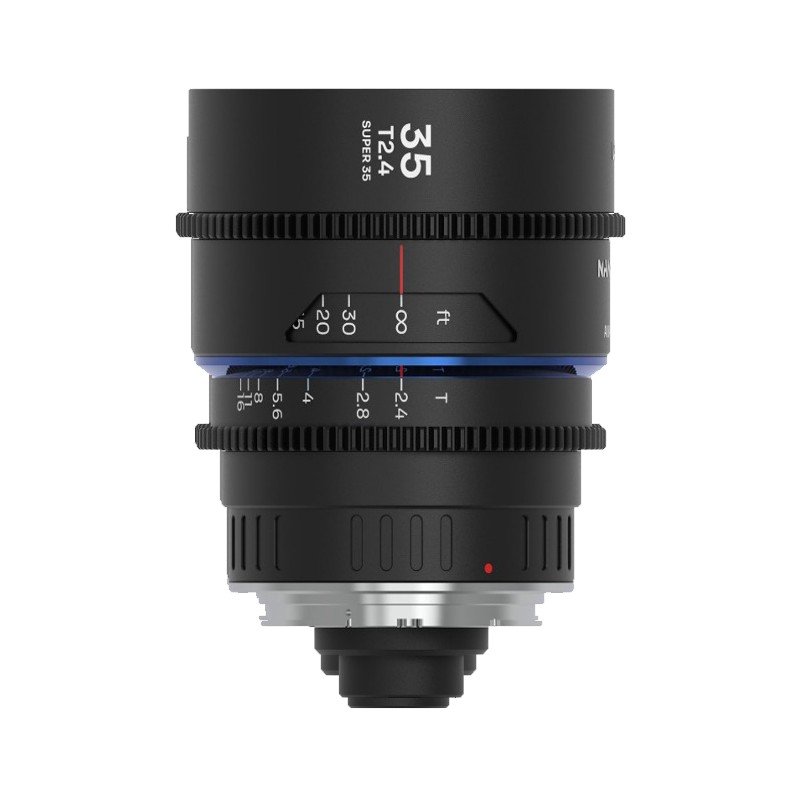

| 35mm Focal Length & Aperture | 35 mm, T2.4 - T16 |
| 35mm Angle of View (H / V) | 57° / 25.8° |
| 35mm Minimum Focusing Distance | 60 cm |
| 35mm Dimensions & Weight | Ø84 x 75 mm, 520 g |

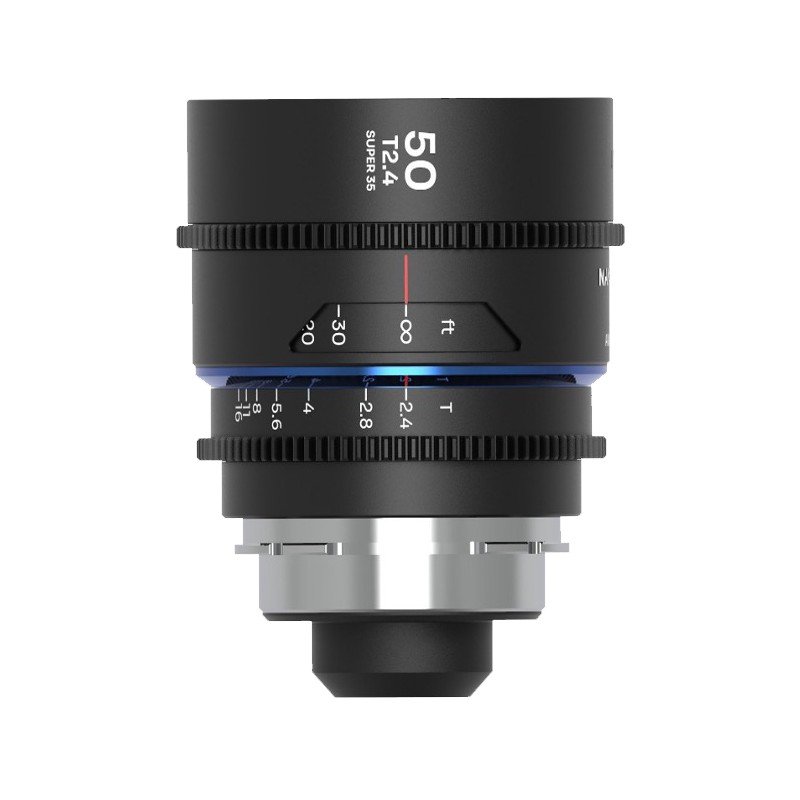

| 50mm Focal Length & Aperture | 50 mm, T2.4 - T16 |
| 50mm Angle of View (H / V) | 42° / 18.2° |
| 50mm Minimum Focusing Distance | 70 cm |
| 50mm Dimensions & Weight | Ø84 x 75 mm, 550 g |
What is included in this lens kit?
The package includes the Nanomorph 27mm T2.8, 35mm T2.4, and 50mm T2.4 lenses, interchangeable Arri PL and Canon EF bayonets, front and rear caps, a set of adjustment keys, and a sealed carrying case capable of holding up to 5 lenses.
Can these lenses be mounted on both Arri PL and Canon EF cameras?
Yes, each lens comes with interchangeable Arri PL and Canon EF bayonets that can be swapped directly using the included mounting hardware.
