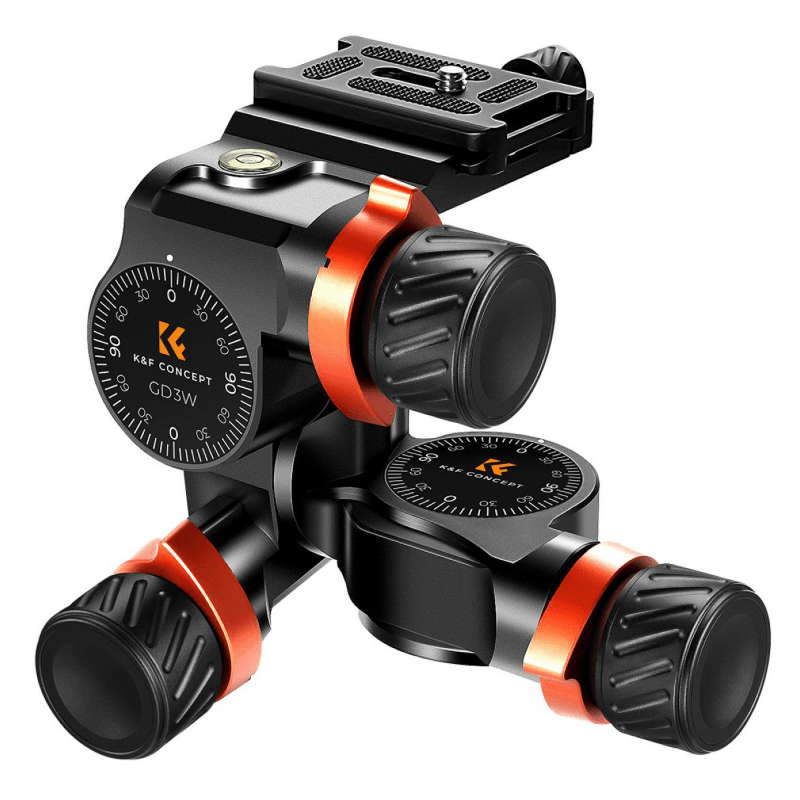

K&F Concept GD3W 3D Geared Tripod Head, Arca-Swiss, up to 6 kg
K&Amp;F
| Products ID: | 193849 |
|---|---|
| Manufactured by: | K&Amp;F |
| Availablity: | SOLDOUT! |
| EAN: | 6942052503402 |
Delivery options to:
Choose country
The K&F Concept GD3W is a precision 3D geared tripod head engineered for accurate frame composition in macro, product, architectural, landscape, and astrophotography.
Precise 3-Axis Geared Adjustment
Independent control knobs for pan, tilt, and roll enable swift orientation, while fine micrometer dials deliver delicate adjustments. The geared mechanism holds its position instantly when a knob is released, preventing camera sag during framing.
CNC-Machined Aluminium Build
Constructed from CNC-machined aluminium, the head supports camera gear weighing up to 6 kg. It weighs 800 g and is rated for operating temperatures from -30°C to 60°C.
Versatility and Mounting
The GD3W is fully compatible with the Arca-Swiss standard and includes a quick-release plate with a 1/4" mounting screw. The base mounts onto tripods via a standard 3/8" thread, complemented by an integrated spirit level for horizon alignment.

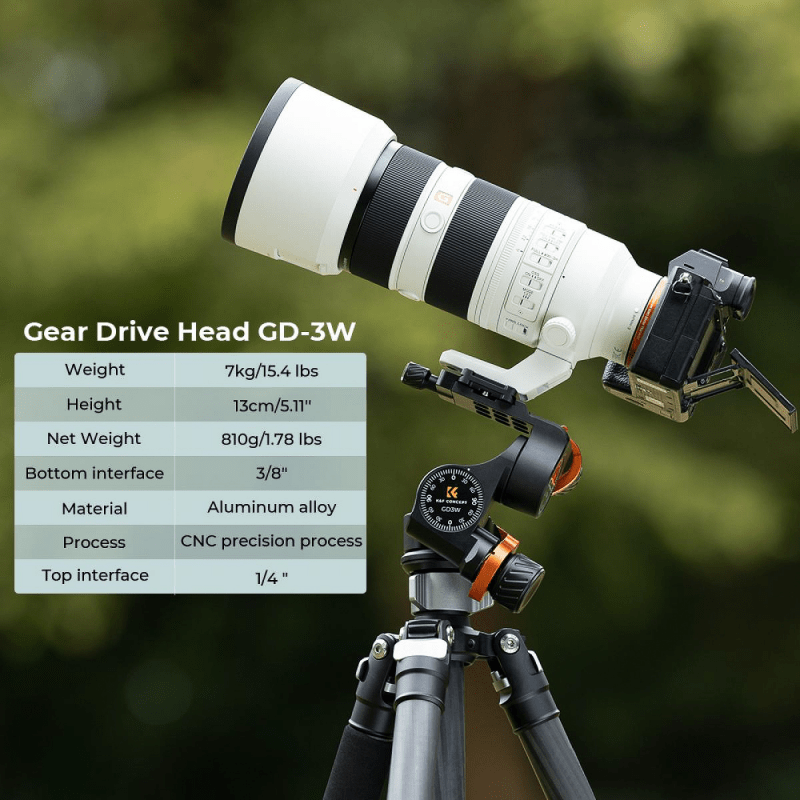

| Model | K&F Concept GD3W |
|---|---|
| Material | Aluminium |
| Operating temperature range | -30°C to 60°C |
| Compatibility | Arca-Swiss standard |
| Camera plate mount | 1/4" |
| Tripod base mount | 3/8" thread |
| Dimensions | 14 x 13 x 11.4 cm |
| Weight | 800 g |
| Maximum load capacity | Up to 6 kg |
What is included in the package?
The package contains the K&F Concept GD3W 3D geared head and a quick release plate.
What is the maximum supported load?
The head supports equipment weighing up to 6 kg.
How does the head attach to cameras and tripods?
It attaches to cameras using an Arca-Swiss quick release plate with a 1/4" screw, and connects to tripods via a standard 3/8" thread.
