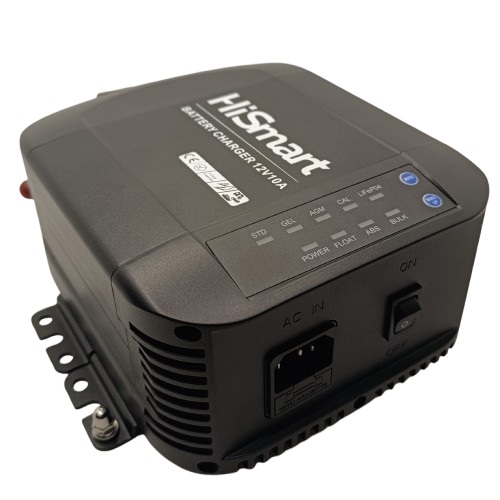

Smart Battery Charger 12V 10A for Lead-Acid and LiFePO4 Batteries

Price: 38.70 €

Products ID:	193193
Manufactured by:	Toolkitrc
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	9990000822706

Delivery options to:

Choose country

Automatic smart battery charger with an integrated charging management system designed for charging and maintaining 12V lead-acid and LiFePO4 batteries across various 12V systems.

Smart Multi-Stage Charging

The charger automatically detects battery condition and adjusts charging current and voltage levels. An automatic 3-stage charging algorithm charges first with constant current, continues with constant voltage, and switches to maintenance mode to prevent overcharging.

Compatible with lead-acid (STD, AGM, GEL, CAL) and lithium iron phosphate (LiFePO4) batteries.
Dedicated battery type button allows easy selection of the appropriate charging profile.
LED indicators show operating status and the selected battery chemistry.
Maximum charging current of 10A supports both standard charging and battery maintenance.

Protective Features and Design

Integrated protections against reverse polarity, overvoltage, and overheating protect both the battery and the charger during operation. Clamps are included in the package for convenient connection to battery terminals.

Input voltage	180-240V AC
Charging current (Imax)	10 A
Frequency	47-63 Hz
Input current	0.78 A
Output current	0-10 A
Supported battery types	STD, AGM, GEL, CAL, LiFePO4
Charging voltage	14.4 V (STD); 14.2 V (GEL); 15.0 V (CAL); 14.8 V (AGM); 14.6 V (LiFePO4)
Float charging voltage	13.4 V (STD); 13.2 V (GEL); 13.8 V (CAL); 13.8 V (AGM); (not applicable to LiFePO4)
Standard boost charging voltage	14.6 V ±0.2 V
Standard maintenance charging voltage	13.8 V ±0.2 V
Display	LED
Efficiency (typical)	85%
Operating temperature	0°C to +60°C
Operating humidity	20–90% RH (non-condensing)

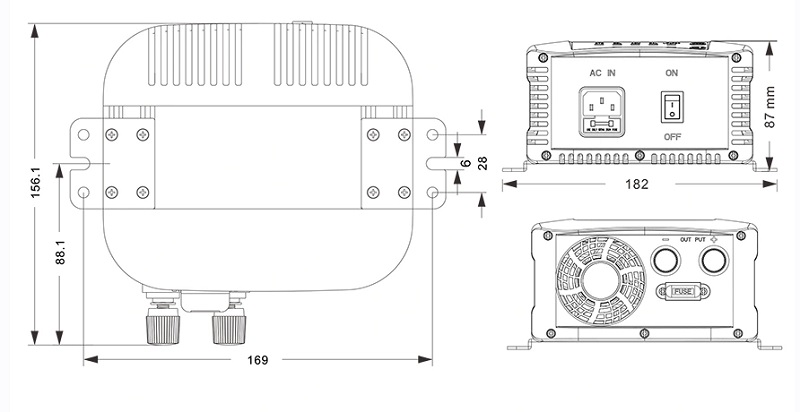

Dimensions	156.1 mm x 182 mm x 87 mm
Weight	~1.2 kg
Color	Black
Warranty	24 months
