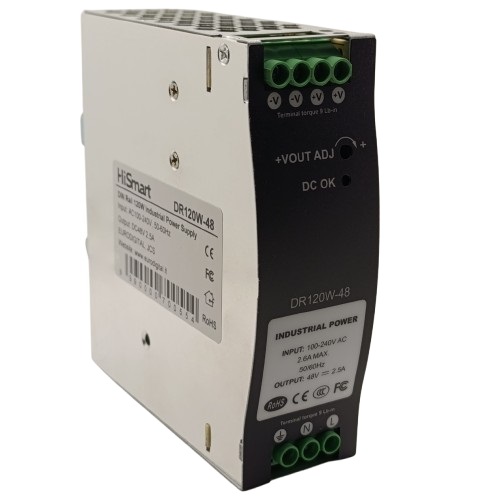

Power supply 48V, 2.5A, 120W, DIN Rail
Price: 49.60 €
| Products ID: | 172705 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000700554 |
Delivery options to:
Choose countryIndustrial 120W power supply unit with 48V DC output, designed for DIN rail mounting.
Features
- Compatible with TS-35/7.5 and TS-35/15 DIN rails
- Adjustable DC output voltage range from 47V to 56V
- Cooling by free air convection
- Short circuit, overload, and over voltage protections
- Operating temperature range from -30°C to 70°C
- High efficiency over 91%
| Output voltage | 48V DC |
|---|---|
| DC voltage adjustable range | 47 ~ 56V |
| Rated current | 2.5A |
| Rated power | 120W |
| Input voltage AC | 90-264V (47-63Hz) |
| AC current | 2.2A/115V, 1.1A/230V |
| Efficiency | >91% |
| Ripple and noise | 100mV p-p |
| Mounting type | DIN rail TS-35/7.5, TS-35/15 |
| Operating temperature | -30°C to 70°C |
| Standards | EN61000-3-2 |
Which DIN rails are supported by this power supply?
This power supply can be installed on standard TS-35/7.5 or TS-35/15 DIN rails.
Can the DC output voltage be adjusted?
Yes, the DC output voltage can be adjusted within the 47V to 56V range.
