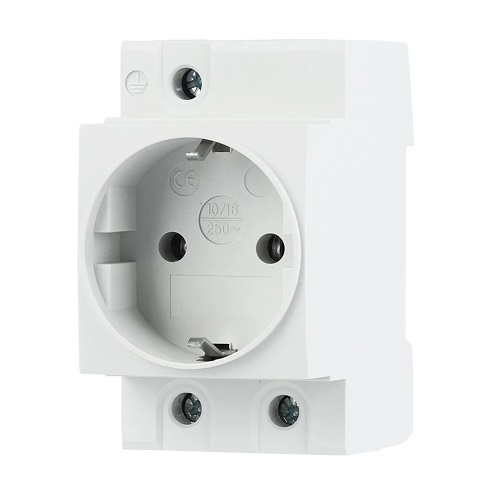

Modular Socket TMS-5, 16A, DIN Rail Mount, White
CNC
| Products ID: | 193331 |
|---|---|
| Manufactured by: | CNC |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 6942108763194 |
Delivery options to:
Choose countryThe TMS-5 modular socket outlet is designed for mounting on a standard 35 mm DIN rail and is used in electrical distribution boards or control panels to connect single-phase electrical devices. Featuring two poles and protective grounding (2P+PE) in a European Schuko configuration, it provides convenient AC power access for tools, measuring equipment, portable lights, and power supplies.
Key Features
- Engineered for 35 mm DIN rail mounting (EN 60715)
- Housing manufactured from fire-resistant plastic
- Standard European (Schuko) socket format
- Top and bottom wire connection design
- Accommodates wire cross-sections up to 25 mm²
Commonly applied in electrical distribution boards, control panels, industrial automation systems, laboratories, and workshops. Installation and wiring must be performed by qualified electrical personnel.
| Number of contacts | 2P+PE |
|---|---|
| Rated current | 16 A |
| Rated voltage | AC 220 V |
| Frequency | 50/60 Hz |
| Electrical service life | 5000 cycles |
| Protection class | IP20 |
| Wire cross-section area | Up to 25 mm² |
| Connection | From top and bottom |
| Installation | On DIN rail EN 60715 (35 mm) |

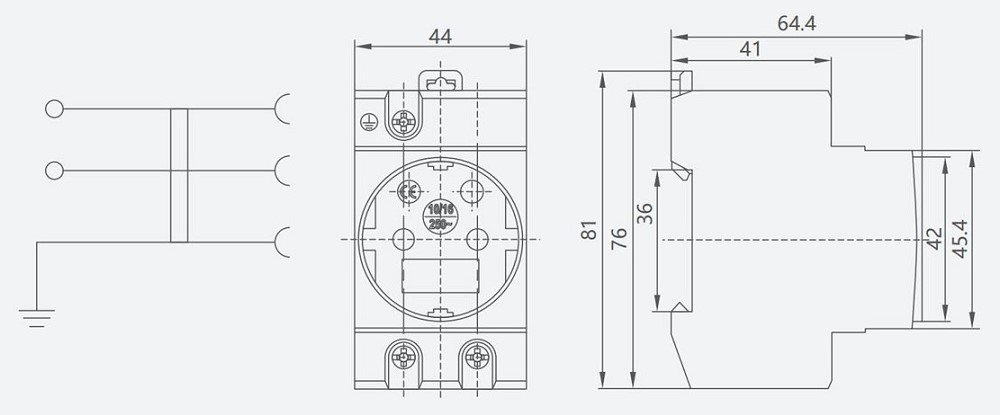

| Dimensions | 76 x 64.4 x 44 mm |
| Width on DIN rail | 44 mm |
| Color | White |
| Standard | IEC60884-1 |
| Warranty | 24 months |
What type of rail is this socket designed for?
This modular socket is designed for mounting on standard 35 mm DIN rails according to the EN 60715 standard.
What is the maximum supported wire cross-section?
The terminal design accommodates wire cross-section areas up to 25 mm².
Who should install this modular socket?
Installation and electrical connection must be carried out by professional electrical personnel.
