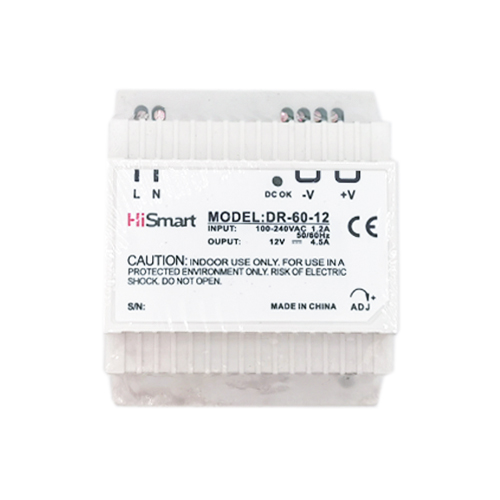

DIN Rail Switching Power Supply 12V 4.5A
Price: 21.60 €
| Products ID: | 171804 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000700509 |
Delivery options to:
Choose countrySwitching power supply delivering 12V DC output, designed for standard DIN rail installation.
Key Features
- Mounts on TS-35/7.5 and TS-35/15 DIN rails
- Cooling by free air convection
- Short circuit, overload, and over voltage protections
- AC input voltage range of 90-264V (47-63Hz)
- Adjustable DC output voltage range of -9% to +10%
| Type | Switching power supply |
|---|---|
| Input Range AC | 90-264V (47-63Hz) |
| Output Voltage DC | 12V |
| DC Voltage Adjustable Range | -9% / +10% |
| Rated Current | 4.5A |
| Rated Power | 54W |
| AC Current | 1.2A/115V, 0.65A/230V |
| Ripple and Noise | 100mV p-p |
| Efficiency | 82% |
| Compatible DIN Rails | TS-35/7.5, TS-35/15 |
Which DIN rails is this power supply compatible with?
It can be installed on TS-35/7.5 or TS-35/15 DIN rails.
What protections are built into this unit?
The power supply includes protections against short circuit, overload, and over voltage.
What is the acceptable AC input range?
The AC input range is 90-264V with a frequency of 47-63Hz.
