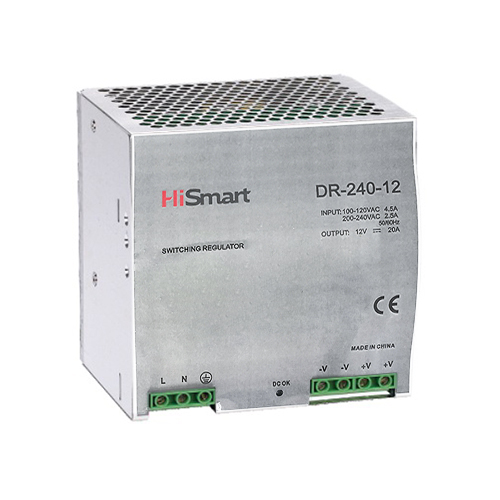

DIN Rail Power Supply 12V 20A 240W
Price: 55.30 €
| Products ID: | 170350 |
|---|---|
| Manufactured by: | Hismart |
| Availablity: | Ready to Order |
| Delivery Time | 5-10 business days |
| EAN: | 9990000700530 |
Delivery options to:
Choose countryA switching power supply providing 12V DC output, 20A rated current, and 240W power output, designed for standard DIN rail mounting.
Key Features
- Mountable on TS-35/7.5 or TS-35/15 DIN rails
- Cooling via free air convection
- Protection against short circuit, over temperature, overload, and over voltage
- DC voltage adjustable range of -9% to +10%
- Operating efficiency of 86%
| Type | Switching power supply |
|---|---|
| Input Voltage Range AC | 95–264V (47–63Hz) |
| Output Voltage DC | 12V |
| DC Voltage Adjustable Range | -9% / +10% |
| Rated Current | 20A |
| Rated Power | 240W |
| AC Current | 4.5A/115V, 2.5A/230V |
| Ripple & Noise | 120mV p-p |
| Efficiency | 86% |
| Mounting | DIN rail TS-35/7.5 or TS-35/15 |
| Cooling | Free air convection |
Which DIN rail types are compatible?
This power supply is compatible with standard TS-35/7.5 and TS-35/15 DIN rails.
What built-in protection features are included?
The unit features built-in protections against short circuit, over temperature, overload, and over voltage.
