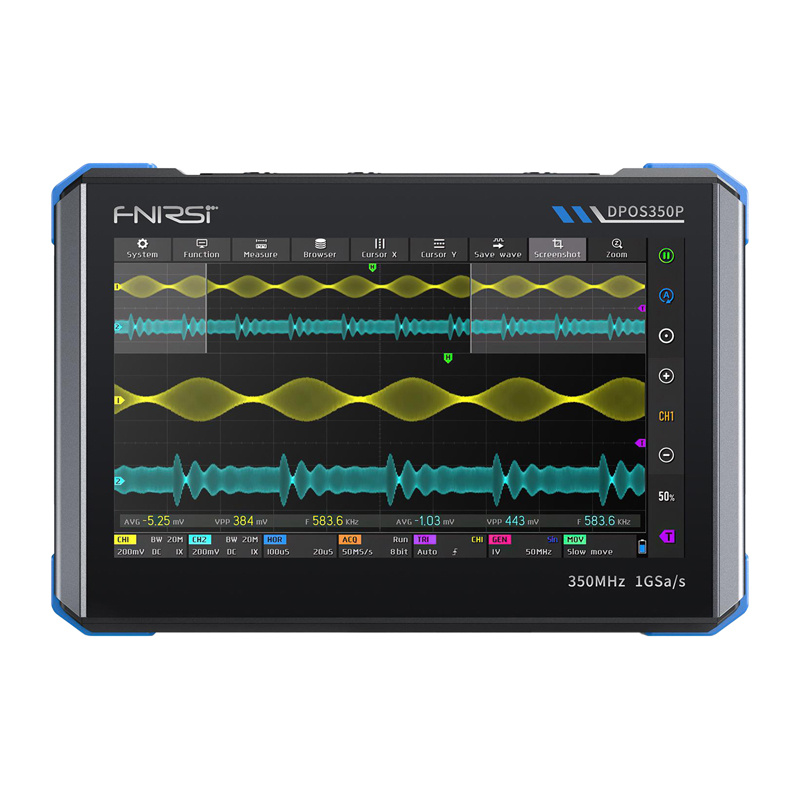

Fnirsi DPOS350P 4-in-1 Digital Oscilloscope

The Fnirsi DPOS350P is a versatile 4-in-1 digital oscilloscope designed for convenient and intuitive operation. It combines the features of an oscilloscope, signal generator, spectrum analyzer, and frequency response analyzer, making it suitable for a wide range of measurement applications. A large 7-inch touch screen provides clear signal viewing and quick access to key functions.

Key Features:

• 4-in-1 Functionality: Oscilloscope (2 channels, 350 MHz, 1 GSa/s), signal generator (up to 50 MHz), spectrum analyzer (200 kHz – 350 MHz), and frequency response analyzer (100 kHz – 50 MHz).

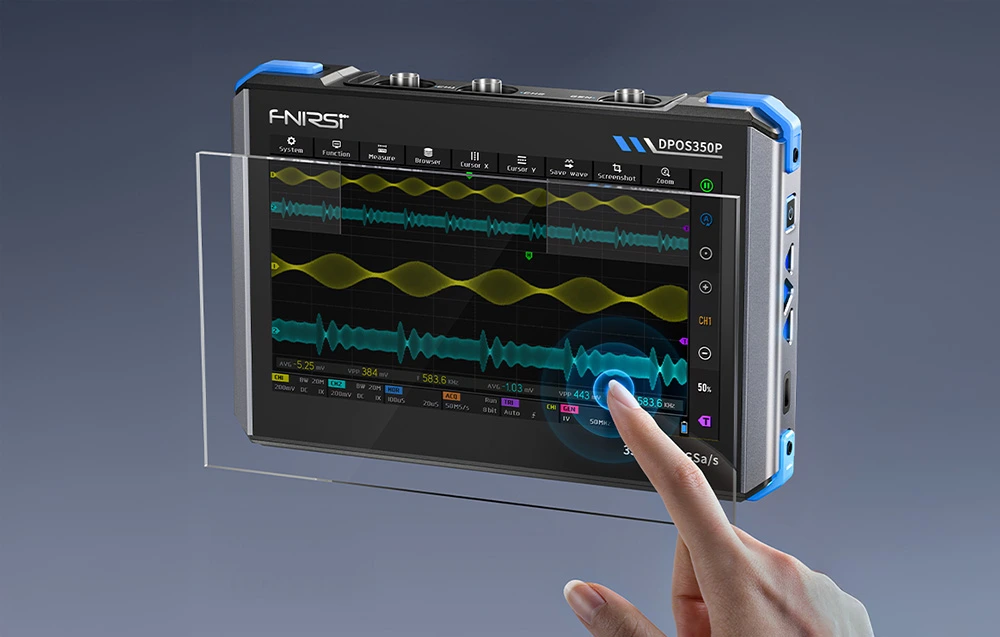

• Large Screen: 7-inch IPS touch screen (1024 × 600) for easy control and clear signal visualization.
• High Performance: 350 MHz bandwidth, 1 GSa/s sampling rate, and 60 kpts memory depth.
• Advanced Analysis: Bodé chart analysis, EMI testing, RF signal analysis, and 3D Waterfall view.
• Portable Design: Tablet form factor with a built-in 8000 mAh battery (up to 3 hours of operating time).

Included:

• Fnirsi DPOS350P oscilloscope
• 350 MHz probe (x2)
• QC18W charger
• USB cable
• Alligator clip leads
• User manual

Technical Specifications:
