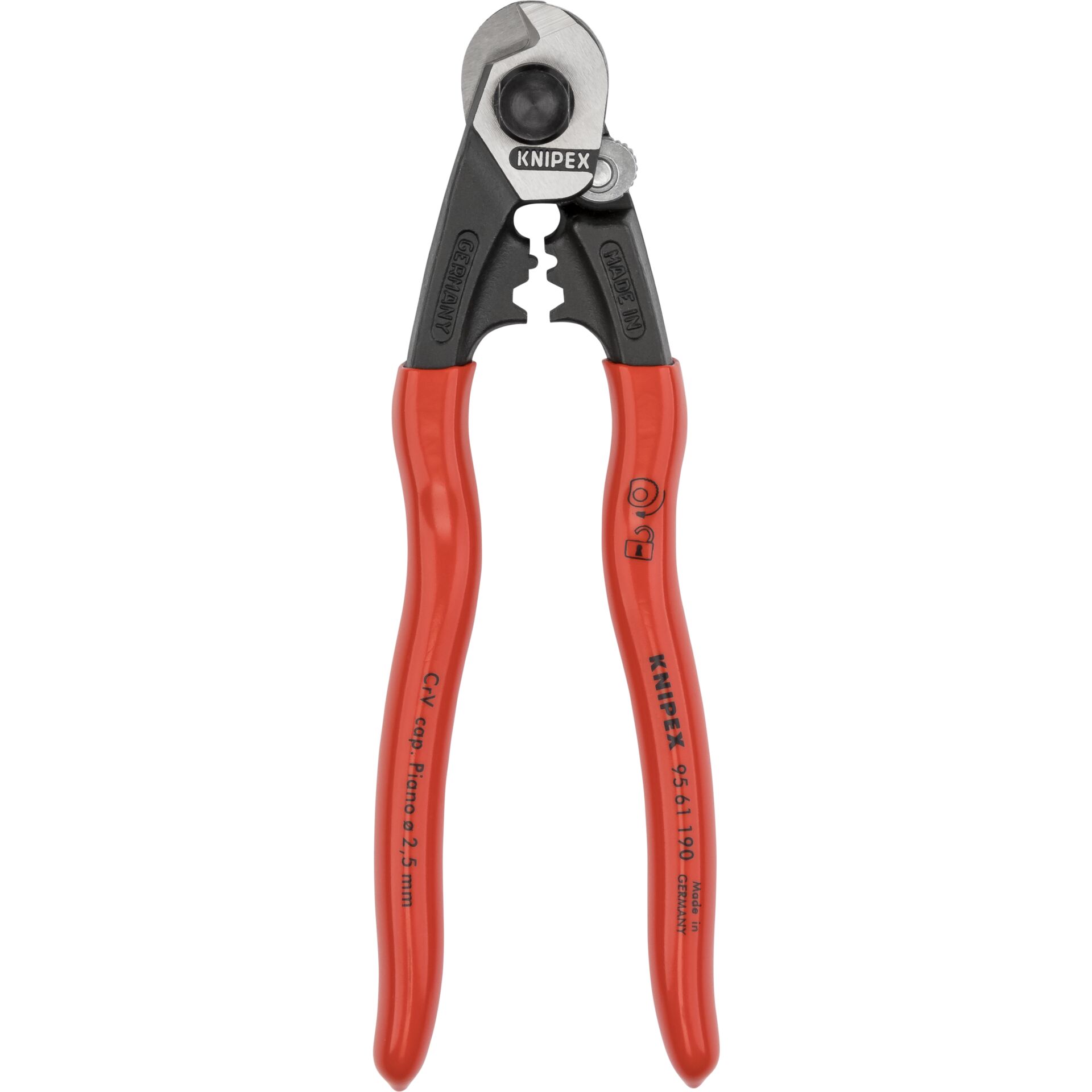

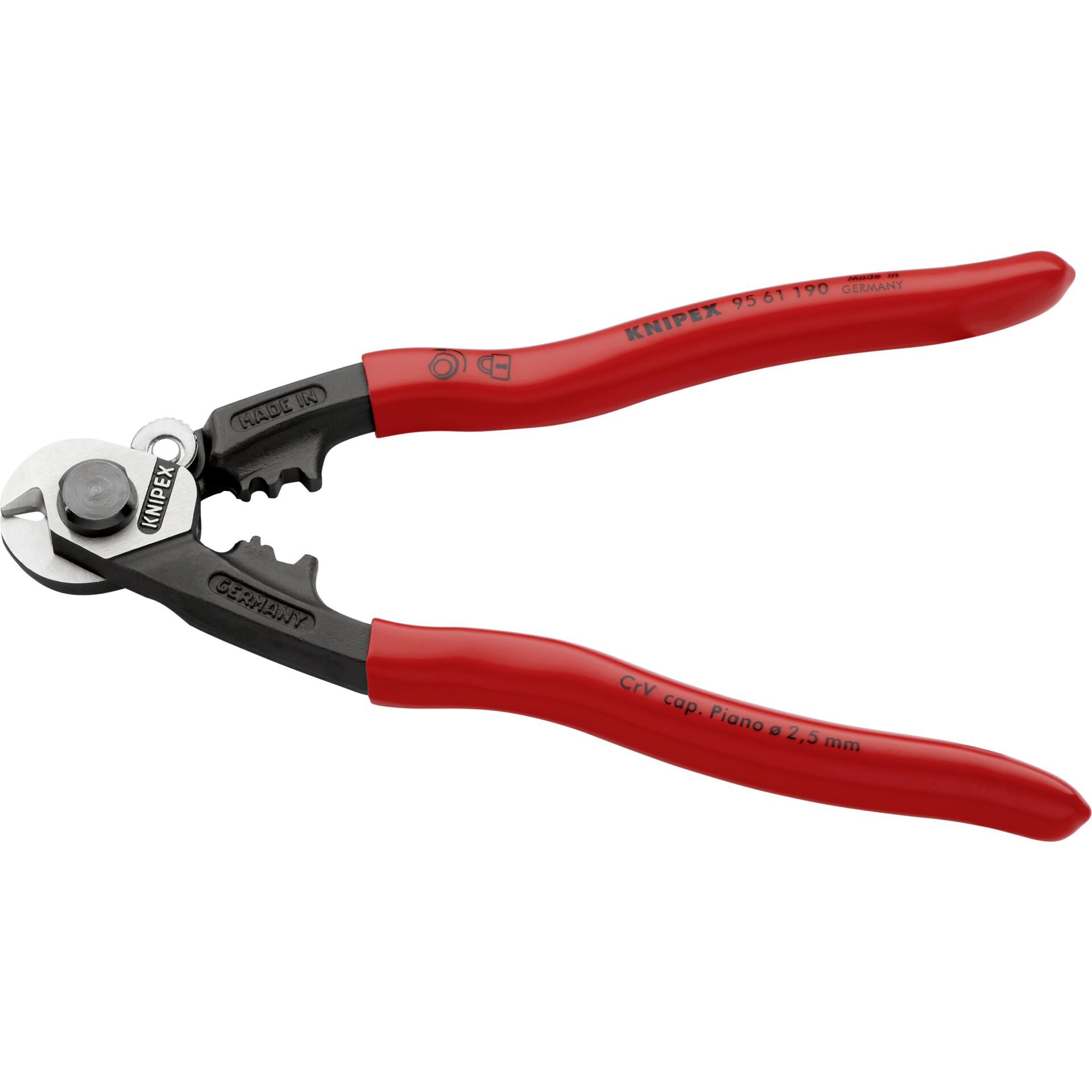

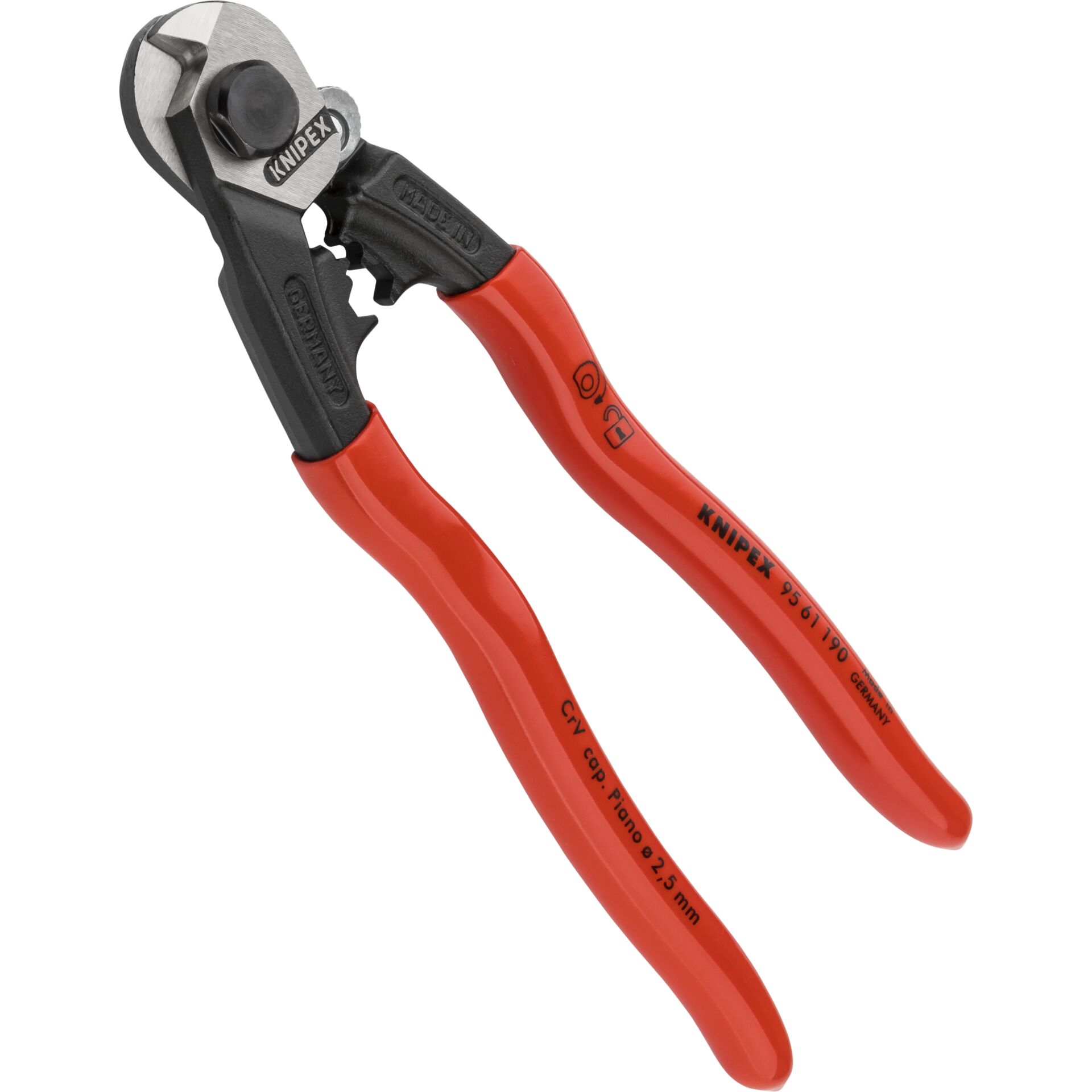

KNIPEX Wire Rope Cutter Forged 95 61 190 190 mm
Price: 49.60 €
| Products ID: | 184388 |
|---|---|
| Manufactured by: | Knipex |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4003773040651 |
Delivery options to:
Choose country

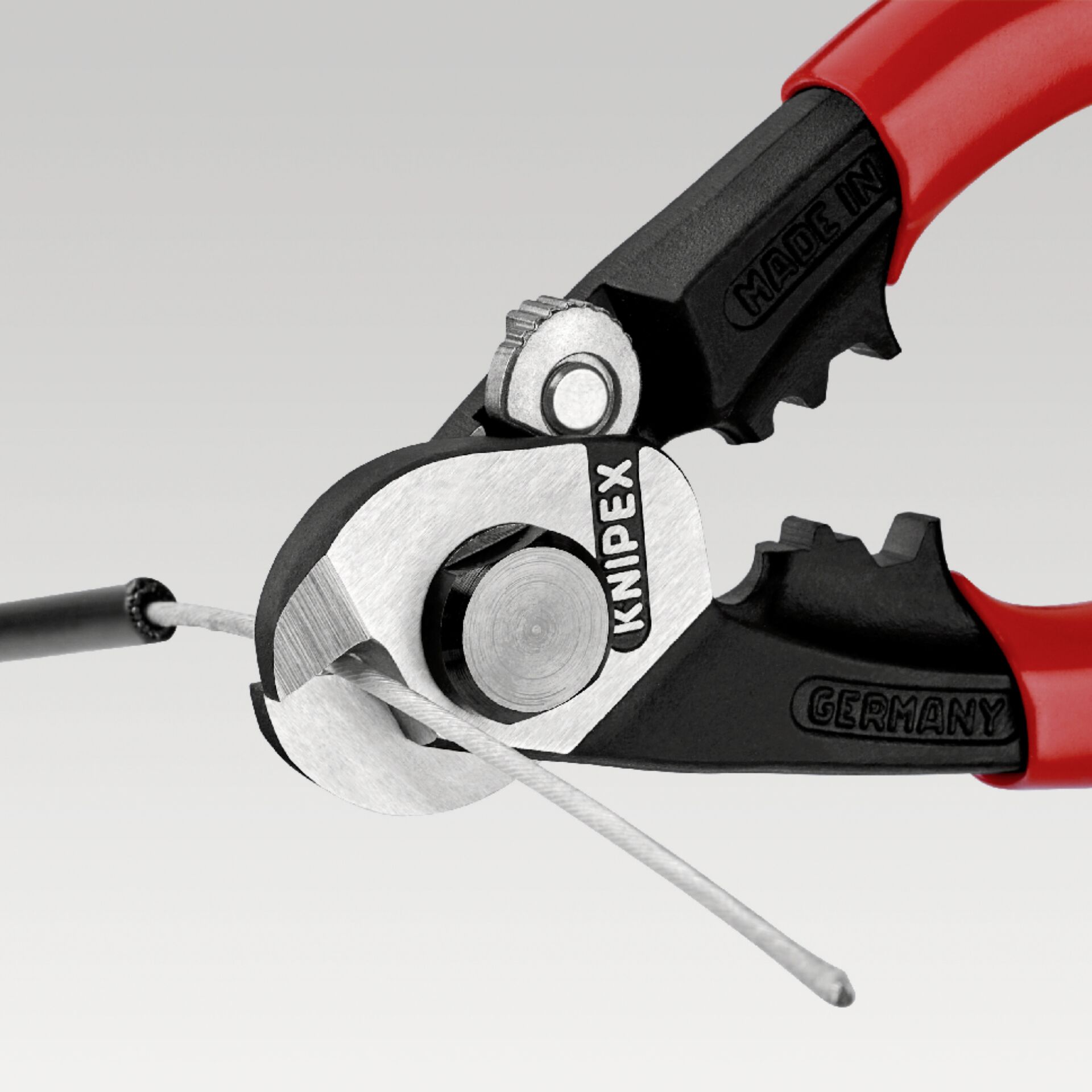

The forged KNIPEX 95 61 190 wire rope cutter is engineered for cutting wire ropes, cables, and wires, as well as crimping end sleeves.
Key Features

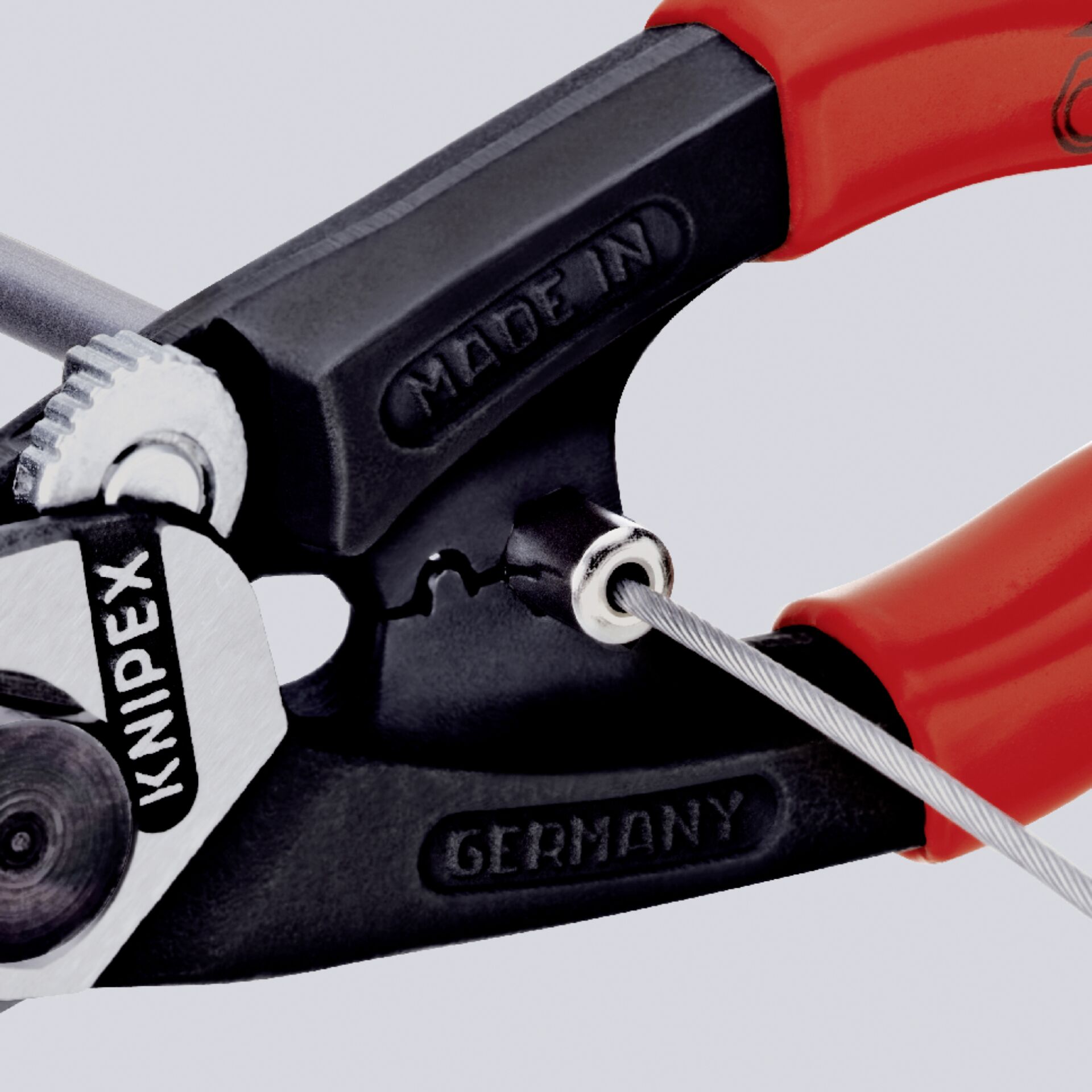

- Two crimping profiles for Bowden cable sheath end sleeves and wire rope end caps
- Slim design with an internal opening spring for comfortable handling
- Adjustable bolted joint for precise blade guidance
- Polished head and plastic-coated handles
| Type | Wire Rope Cutter |
|---|---|
| Model | 95 61 190 |
| Overall length | 190 mm |
| Weight | 310 g |
| Head | Polished |
| Type of handle | Plastic |
| Cutting capacity, wire rope | Ø 5.0 mm |
| Cutting capacity, Cu cable, multi-strand (diameter) | Ø 7.0 mm |
| Cutting capacity, Cu cable, multi-strand (cross-section) | 10 mm² |
| Cutting capacity, Cu cable, fine-strand | Ø 6.0 mm² |
| Cutting capacity, medium hard wire | 4.0 mm |
| Cutting capacity, piano wire | Ø 2.5 mm |
| Cutting capacity, iron | Ø 4 mm |
| AWG | 8 |
| Material | Steel / Plastic |
| Colour | Red / Black |
| Width | 6 cm |
| Height | 2,0 cm |
| Depth | 19,0 cm |
| Reach | No |
| RohS | No |
What is the maximum wire rope cutting capacity?
This cutter handles wire ropes up to Ø 5.0 mm.
Can this tool crimp end sleeves?
Yes, it features two crimping profiles for Bowden sheath end sleeves and wire rope end caps.
