KNIPEX StepCut 95 12 160 Cable Shears 160 mm
Knipex
| Products ID: | 187071 |
|---|---|
| Manufactured by: | Knipex |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4003773085928 |
Delivery options to:
Choose country

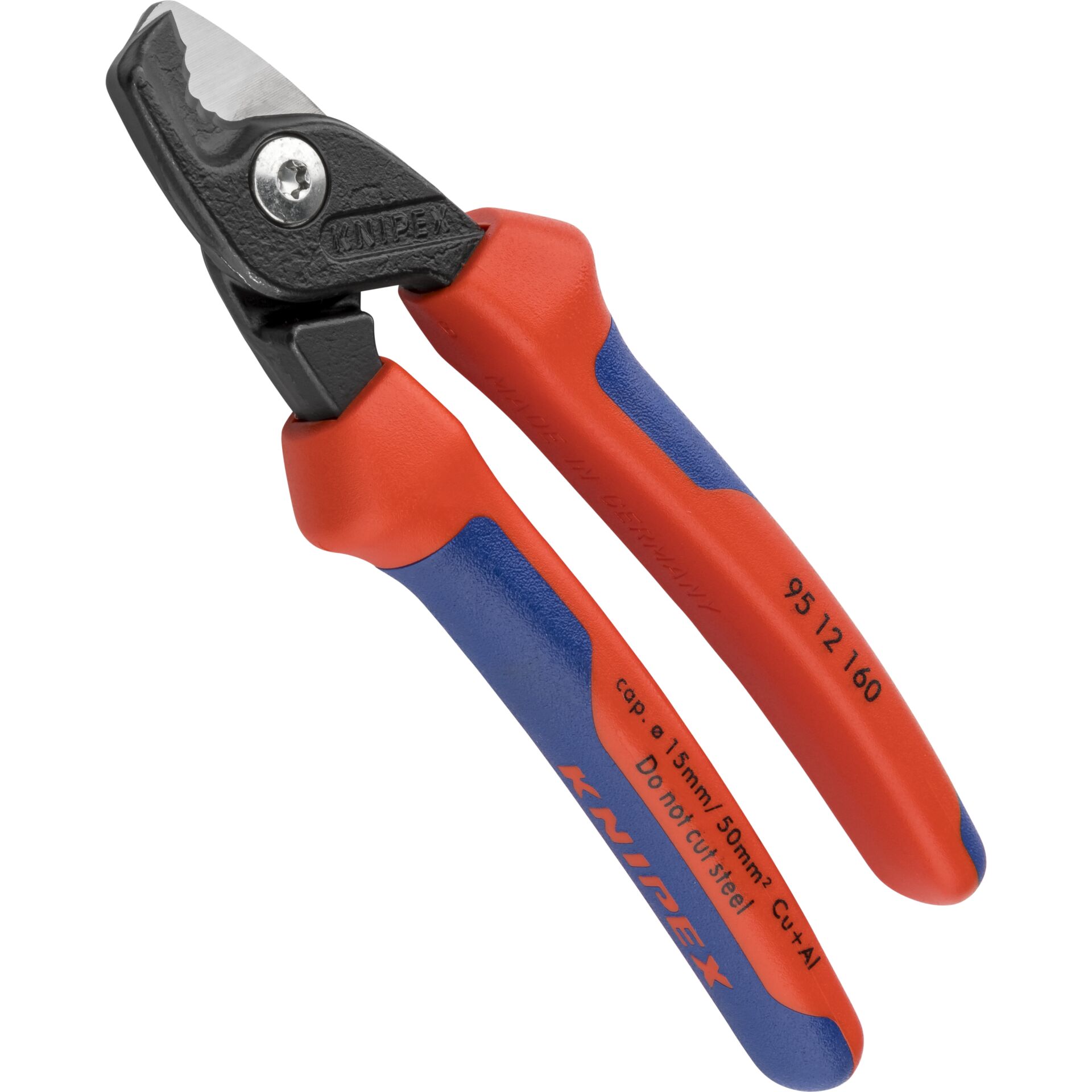

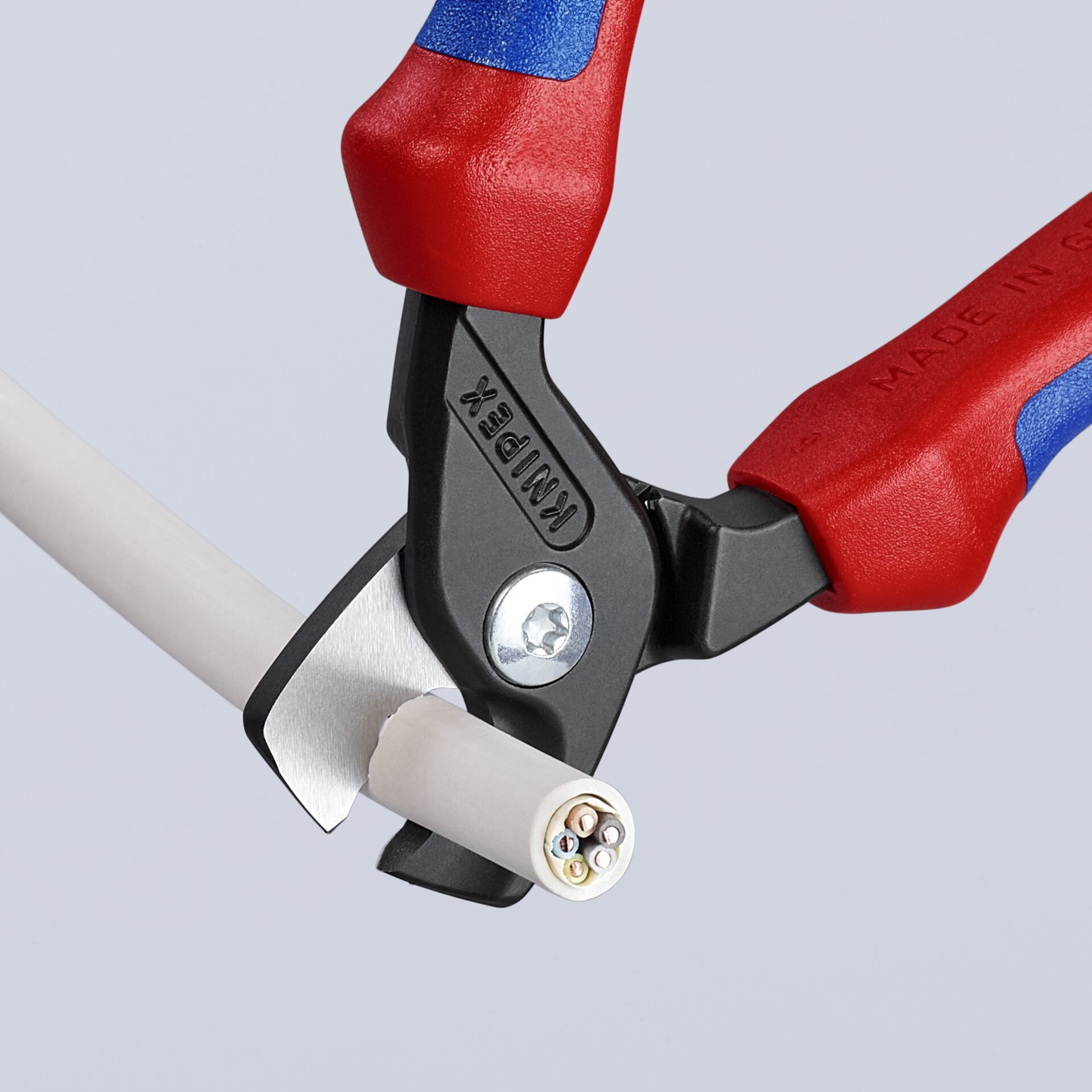

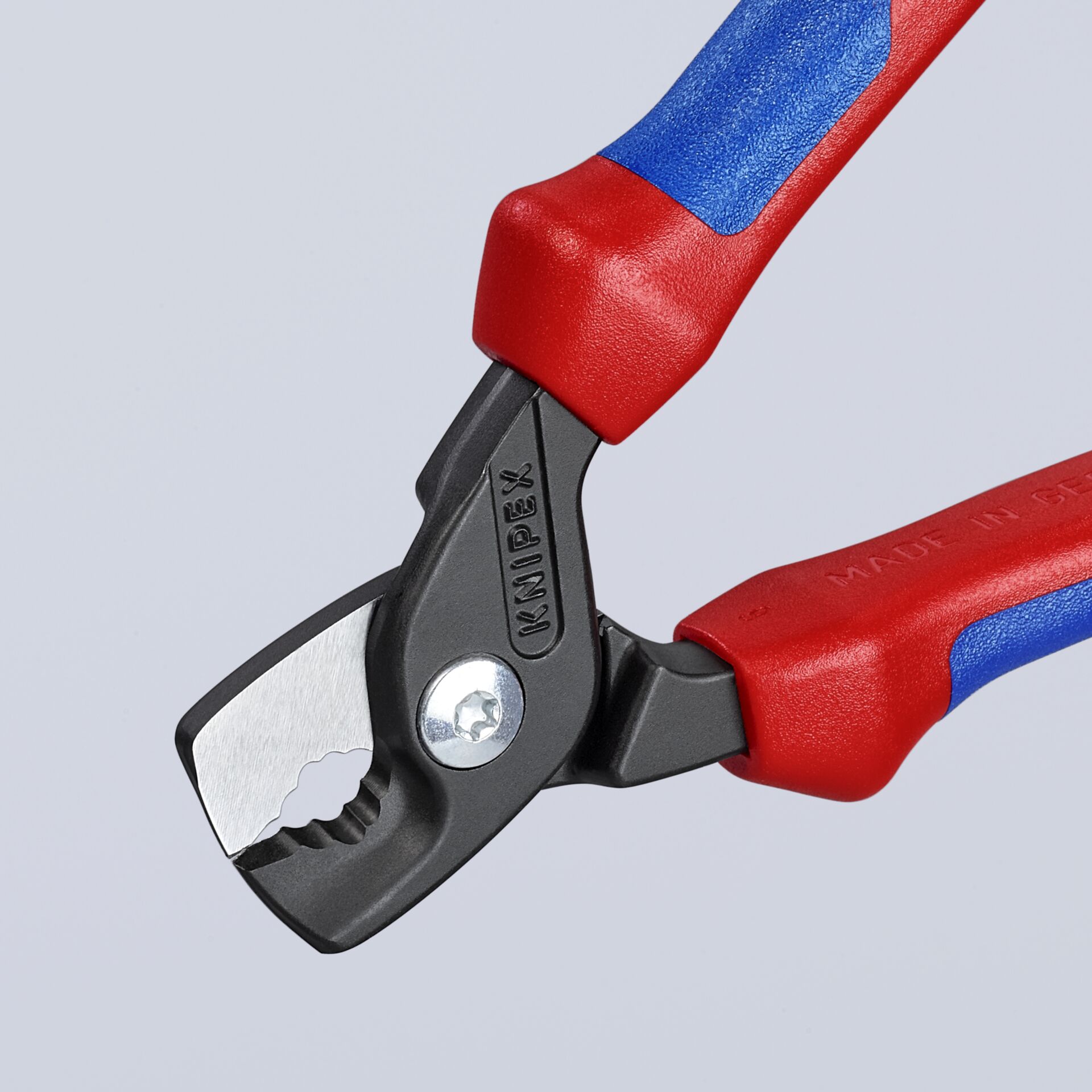

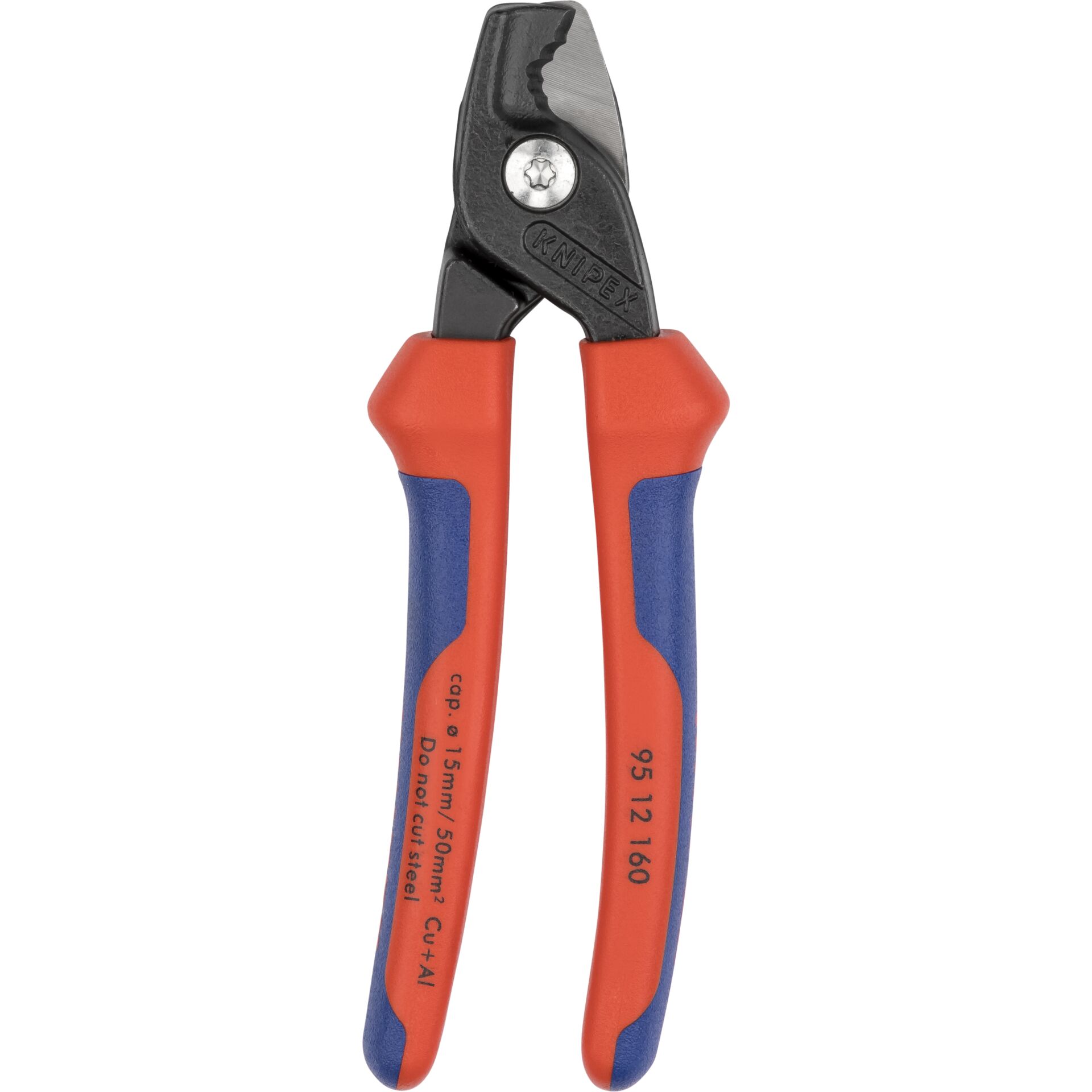

The KNIPEX StepCut 95 12 160 is a 160 mm cable shear engineered to deliver clean cuts without crushing or deforming the cable.
Cutting Performance and Construction
Constructed from steel with a burnished finish, these shears feature induction-hardened cutting edges with a hardness of approximately 56 HRC. They cut multi-core copper cables up to 50 mm² or 15 mm in diameter, as well as solid copper and aluminium cables up to 5 x 4 mm.
Comfort and User Safety
Fitted with ergonomic multi-component grips, the shears provide a secure hold and include an integrated pinch guard to protect fingers during use. This tool is not suitable for steel wire or hard-drawn copper conductors.
| Product Type | Cable Shears |
|---|---|
| Model | StepCut 95 12 160 |
| Overall Length | 160 mm |
| Weight | 225 g |
| Width | 5.3 cm |
| Height | 2.0 cm |
| Depth | 16.0 cm |
| Material | Steel / Plastic |
| Colour | Red / Black |
| Tool Finish | Burnished |
| Handle Type | Multi-Component Grip |
| Number of Blades | 2 |
| Cutting Edge Hardness | approx. 56 HRC |
| Cutting Capacity Cu Cable, Multi-Wire (Cross-Section) | 50 mm² |
| Cutting Capacity Cu Cable, Multi-Wire (Diameter) | Ø 15 mm |
| Cutting Capacity Solid Cu and Al Cables | up to 5 x 4 mm |
| Pinch Protection | Yes |
| Suitable for Steel Wire | No |
| Reach | No |
| RoHS | No |
Can the KNIPEX StepCut shears cut steel wire?
No, these shears are not suitable for cutting steel wire or hard-drawn copper conductors.
What is the maximum cutting capacity of this tool?
The shears can cut multi-wire copper cables up to 50 mm² (Ø 15 mm) and solid copper or aluminium cables up to 5 x 4 mm.
