KNIPEX 14 26 160 Diagonal Insulation Stripper, 160 mm, VDE
Price: 49.60 €
| Products ID: | 182703 |
|---|---|
| Manufactured by: | Knipex |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4003773040279 |
Delivery options to:
Choose country

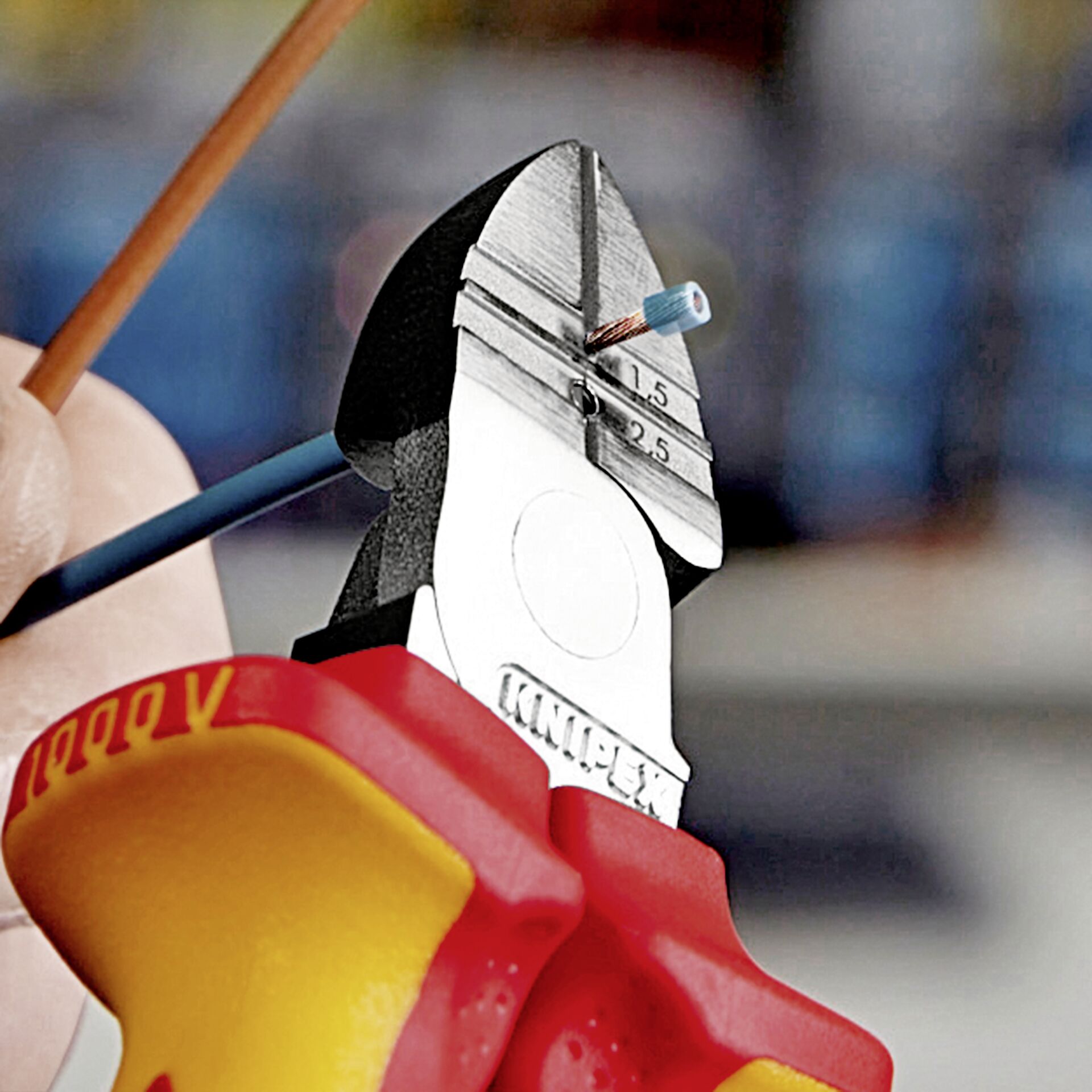

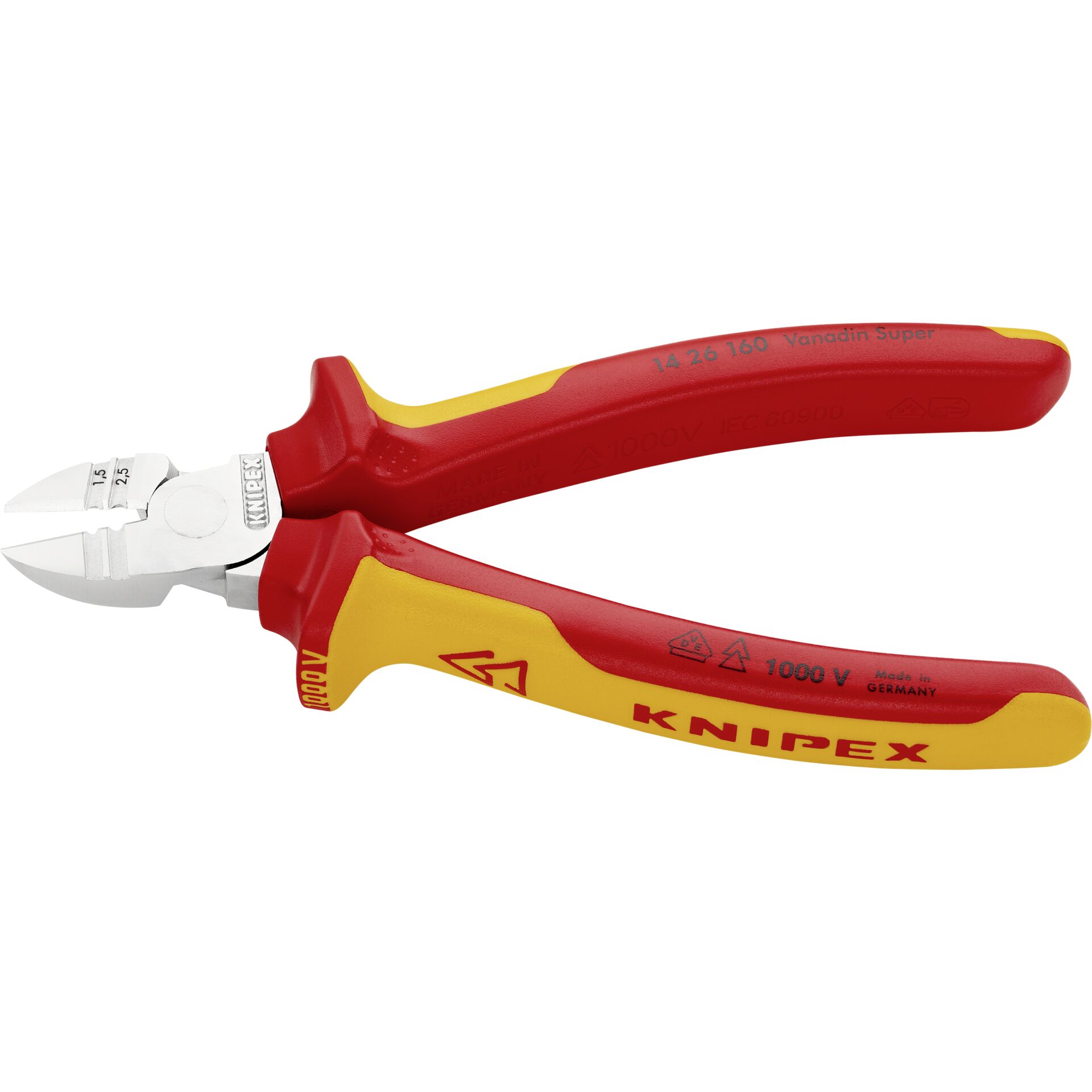

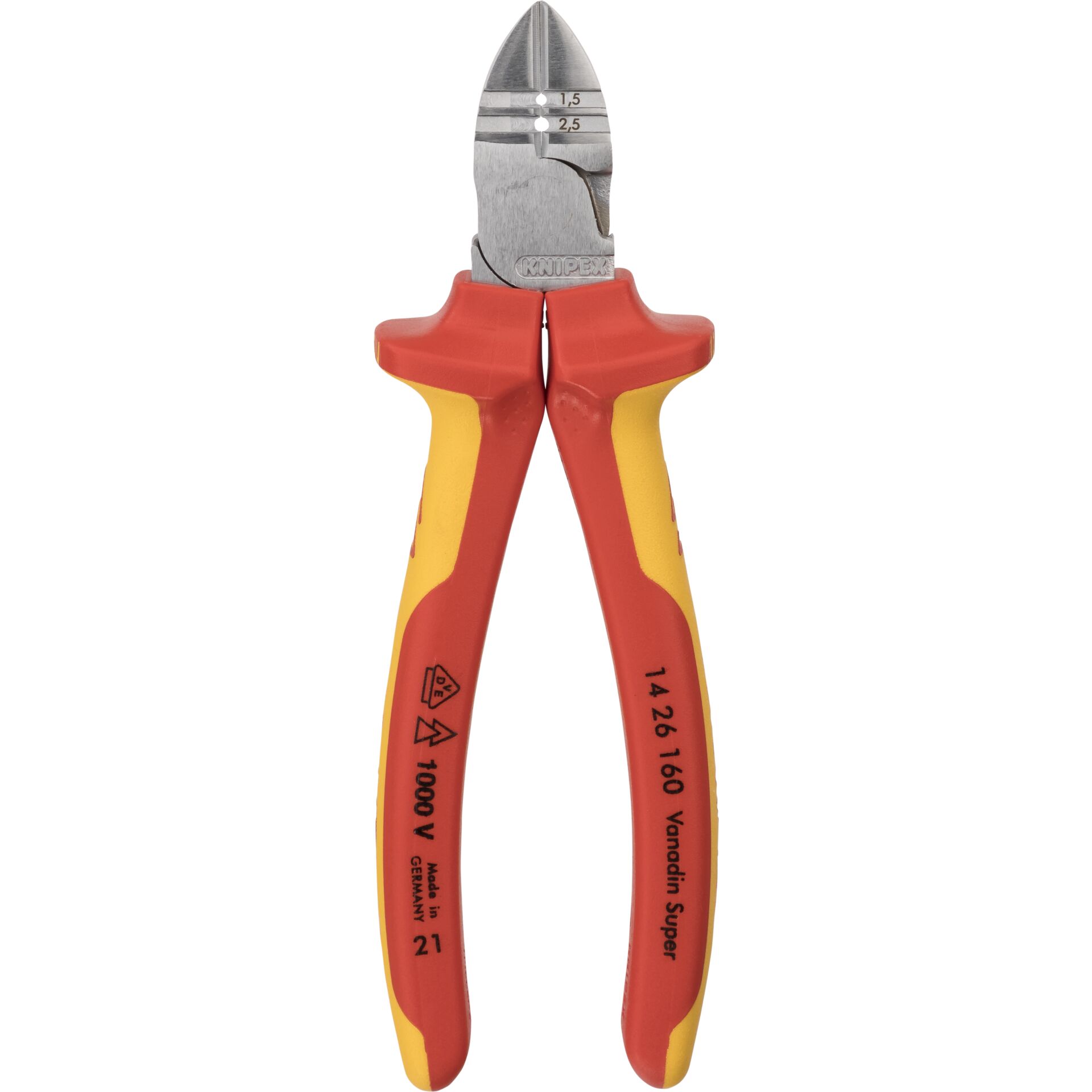

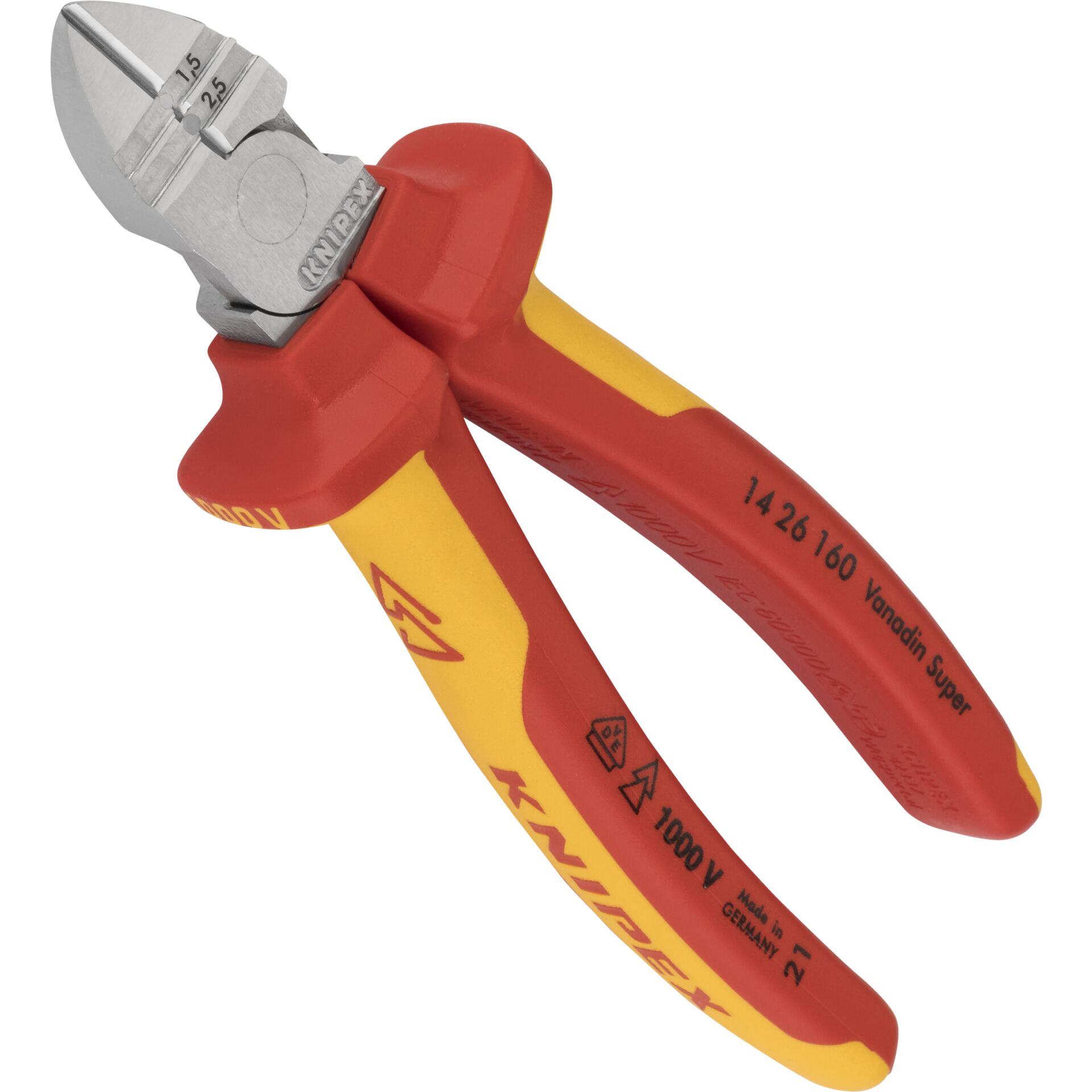

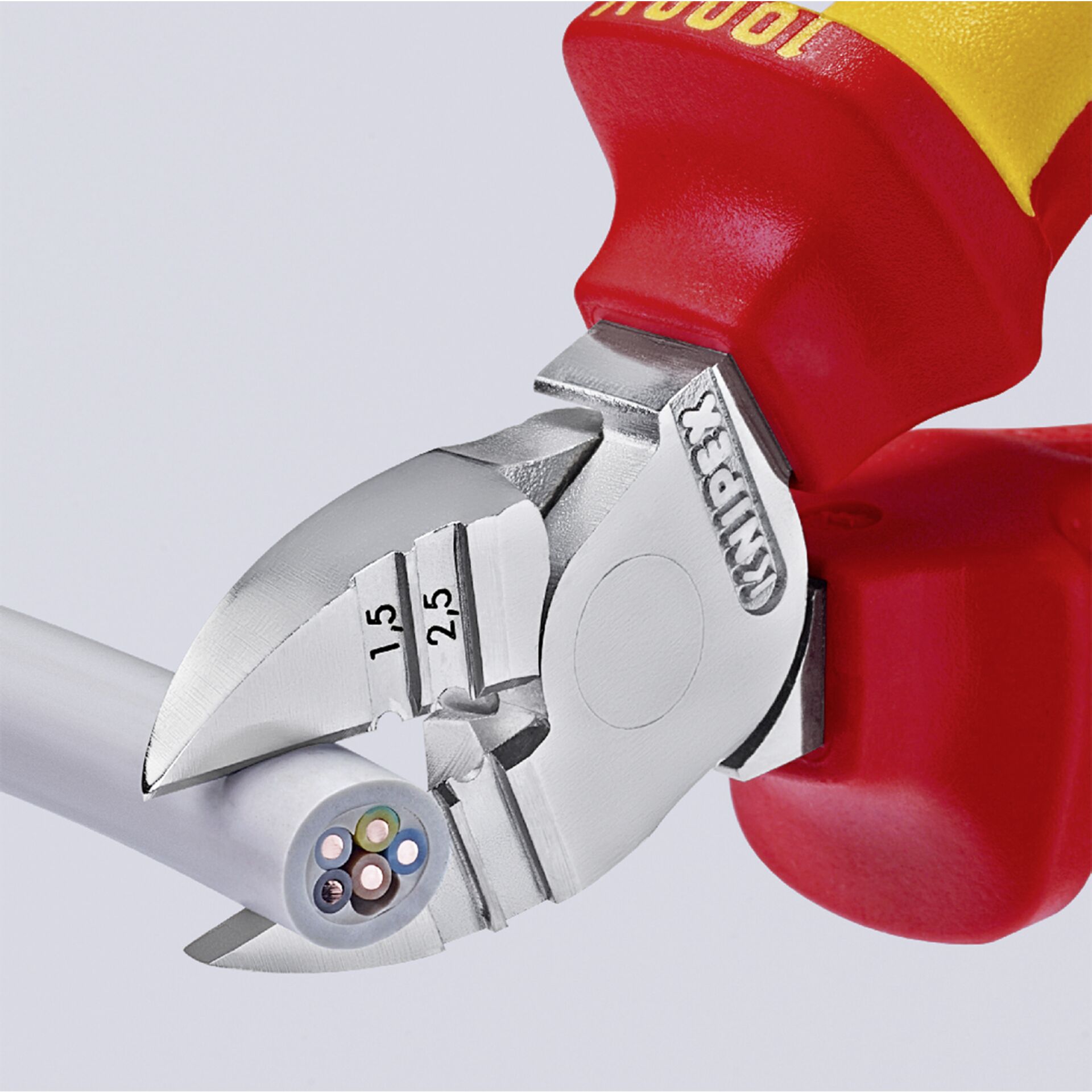

The KNIPEX 14 26 160 diagonal insulation stripper combines cutting performance with stripping holes for common electrical wire sizes.
Key Features
- Stripping capacity for 1.5 and 2.5 mm² conductors (AWG 16 / 14)
- Soft wire cutting capacity up to 2.5 mm in diameter
- Medium-hard wire cutting capacity up to 1.5 mm in diameter
- Chrome-plated head and pliers
- Multi-component grips insulated and VDE-tested
- Long cutting edges and long tips
| Model | 14 26 160 |
|---|---|
| Overall length | 160 mm |
| Pliers and head | Chrome-plated |
| Handles | Insulated with multi-component sleeves, VDE-tested |
| VDE-tested | Yes |
| Stripping capacities | 1.5 / 2.5 mm² |
| AWG | 16 / 14 |
| Cutting capacity soft wire (diameter) | 2.5 mm |
| Cutting capacity medium hard wire (diameter) | 1.5 mm |
| Material | Steel / Plastic |
| Weight | 216 g |
| Colour | Red / Yellow |
| Dimensions (depth x width x height) | 16.0 x 6.0 x 3.0 cm |
What wire cross-sections can be stripped with this tool?
This tool features stripping notches for wire cross-sections of 1.5 mm² and 2.5 mm² (AWG 16 / 14).
What are the cutting limits for wires?
It can cut soft wire up to 2.5 mm diameter and medium-hard wire up to 1.5 mm diameter.
Are the handles VDE tested?
Yes, the handles are insulated with multi-component sleeves and are VDE-tested.
