Fein ASCM 18-4 QM AS 18V Cordless Drill Driver (Without Battery and Charger)

Price: 331.50 €

Products ID:	183186
Manufactured by:	Fein
Availablity:	Ready to Order
Delivery Time	7-15 business days
EAN:	4014586981161

Delivery options to:

Choose country

Fein ASCM 18-4 QM AS 18V Cordless Drill Driver (Without Battery and Charger)

The Fein ASCM 18-4 QM AS is a compact cordless drill driver equipped with a low-wear brushless motor, engineered for demanding drilling and screwdriving tasks in metal and wood.

Key Features

4-speed full-metal gearbox with speeds up to 4000 rpm
QuickIN interface for fast accessory changes
Kickback control prevents tool rotation in case of jamming
Electronic torque selection for precise screwdriving
Dimmable integrated LED work light
AMPShare 18V system interface for battery compatibility

Tool type	Drill driver
Tool mounting system	QuickIN / drill chuck
Drill chuck capacity	1.5 – 13 mm
Battery voltage	18 V
Battery compatibility	AMPShare / Bosch Professional / ProCORE 18V (Li-Ion)
Motor type	Brushless
Gearbox	4-speed
No-load speed (1st gear)	430 min⁻¹
No-load speed (2nd gear)	850 min⁻¹
No-load speed (3rd gear)	2000 min⁻¹
No-load speed (4th gear)	4000 min⁻¹
Torque (soft)	50 Nm
Torque (hard)	70 Nm
Torque settings	15 + 1
Drilling Ø steel (twist drill)	13 mm
Drilling Ø steel (core drill)	30 mm
Drilling Ø steel (hole saw)	80 mm
Drilling Ø wood	60 mm
Tapping capacity	M 14
Max. screw size	10 x 400 mm
Sound power level LWA	83.9 dB
Sound pressure level LpA	75.9 dB
Vibration value ah,D	0.9 m/s²
Weight without battery	1.30 kg
Color	Orange / black

What is included in the package?

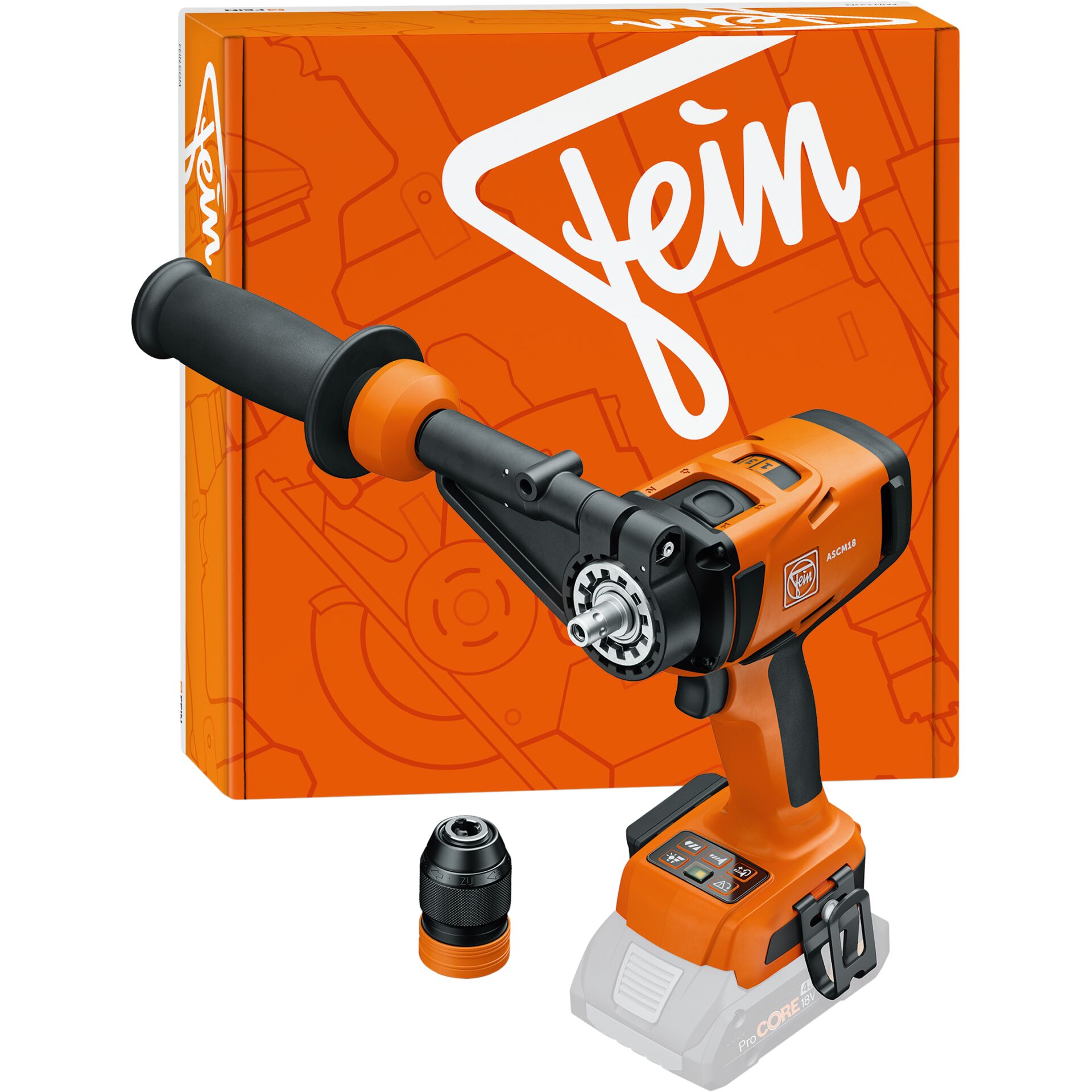

The package includes the ASCM 18-4 QM AS cordless drill driver, QuickIN drill chuck (120 Nm), belt clip, bit holder, and telescopic handle. The battery and charger are not included.

Which batteries are compatible with this tool?

This drill driver is compatible with all 18V AMPShare, Bosch Professional, and ProCORE Li-Ion batteries.
