Maclean MCE132 Microwave Motion Sensor for Junction Box, 1200W, 5–15m

Q: Can this sensor detect motion through partitions?

Yes, microwave detection allows the sensor to operate when placed behind thin walls, doors, panels, or glass.

Q: What is the maximum load supported by the sensor?

The Maclean MCE132 supports a maximum connected load of up to 1200W.

Maclean

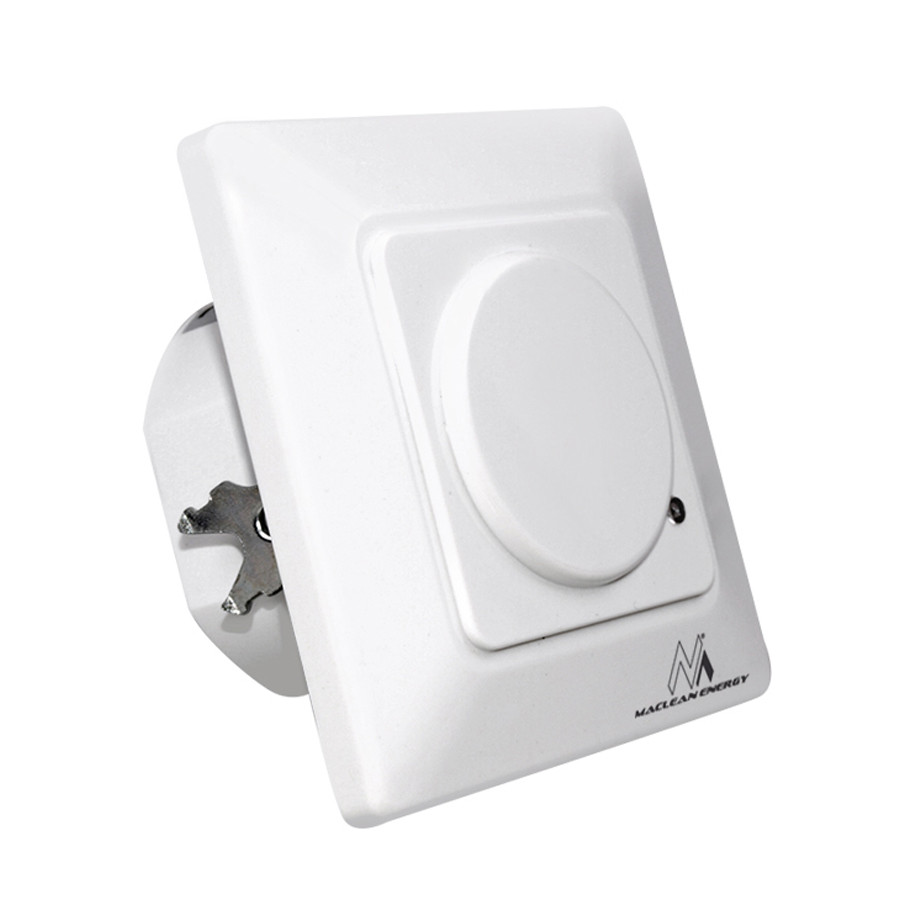

Maclean MCE132 Microwave Motion Sensor for Junction Box, 1200W, 5–15m — image 3

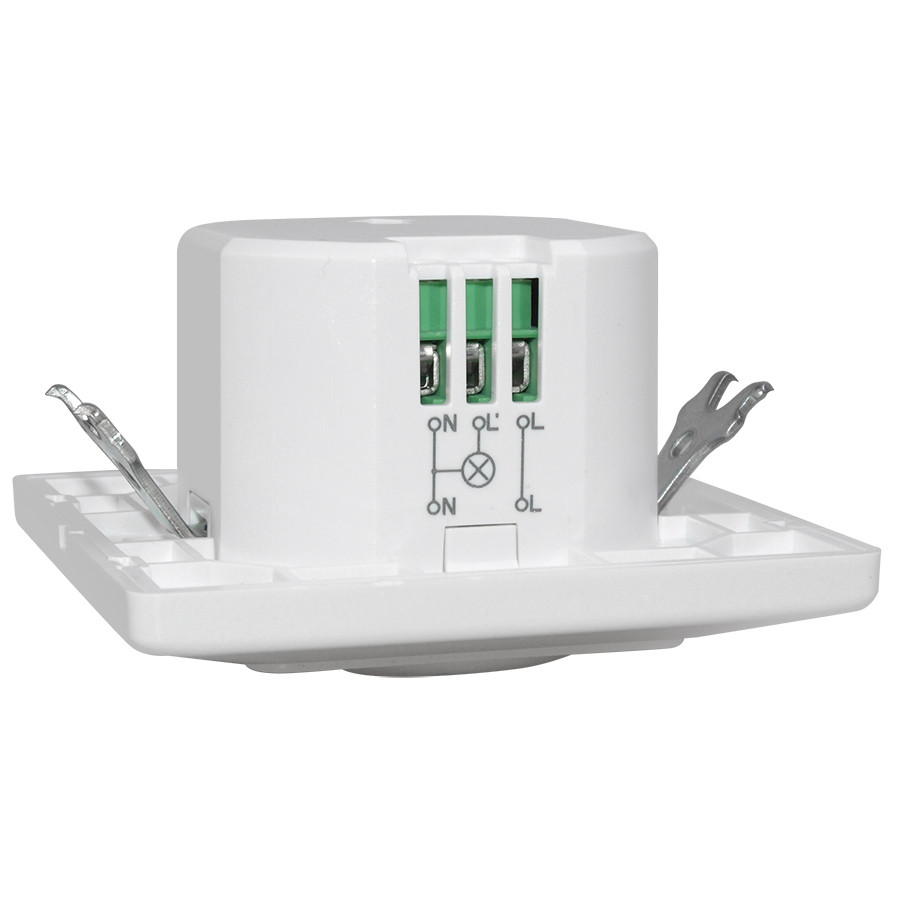

Maclean MCE132 Microwave Motion Sensor for Junction Box, 1200W, 5–15m — image 4

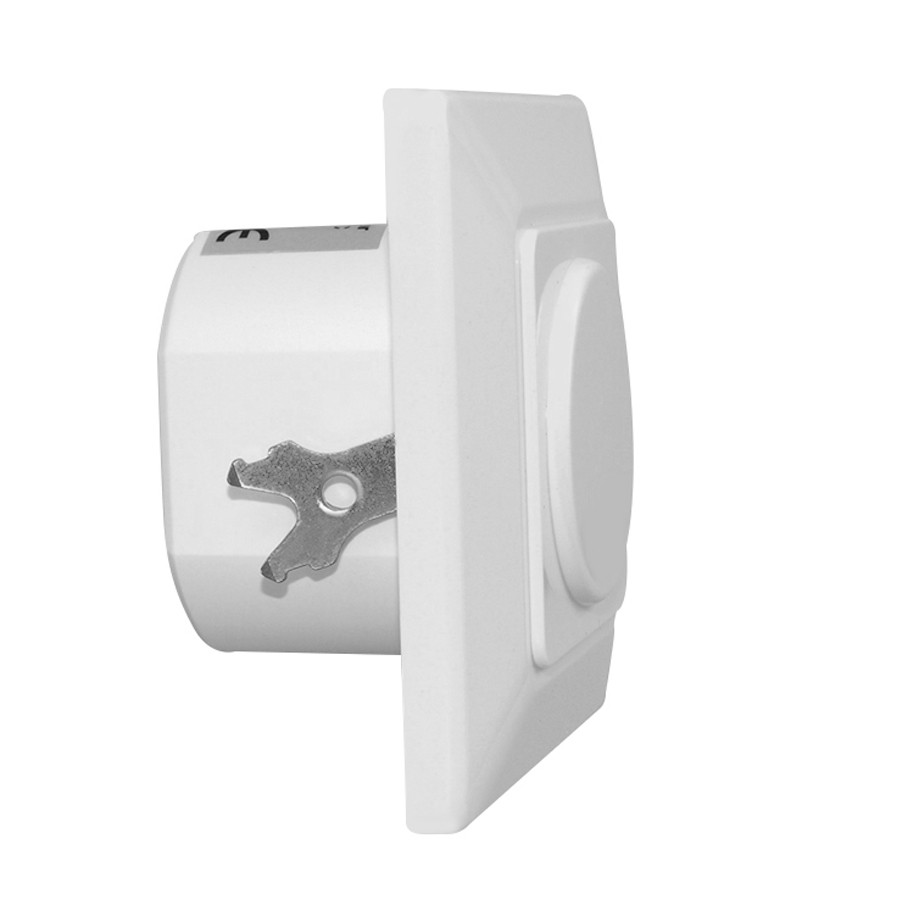

Maclean MCE132 Microwave Motion Sensor for Junction Box, 1200W, 5–15m — image 5

Price: 14.80 €

Products ID:	193994
Manufactured by:	Maclean
Availablity:	Ready to Order
Delivery Time	5-15 business days
EAN:	5902211102168

Delivery options to:

Choose country

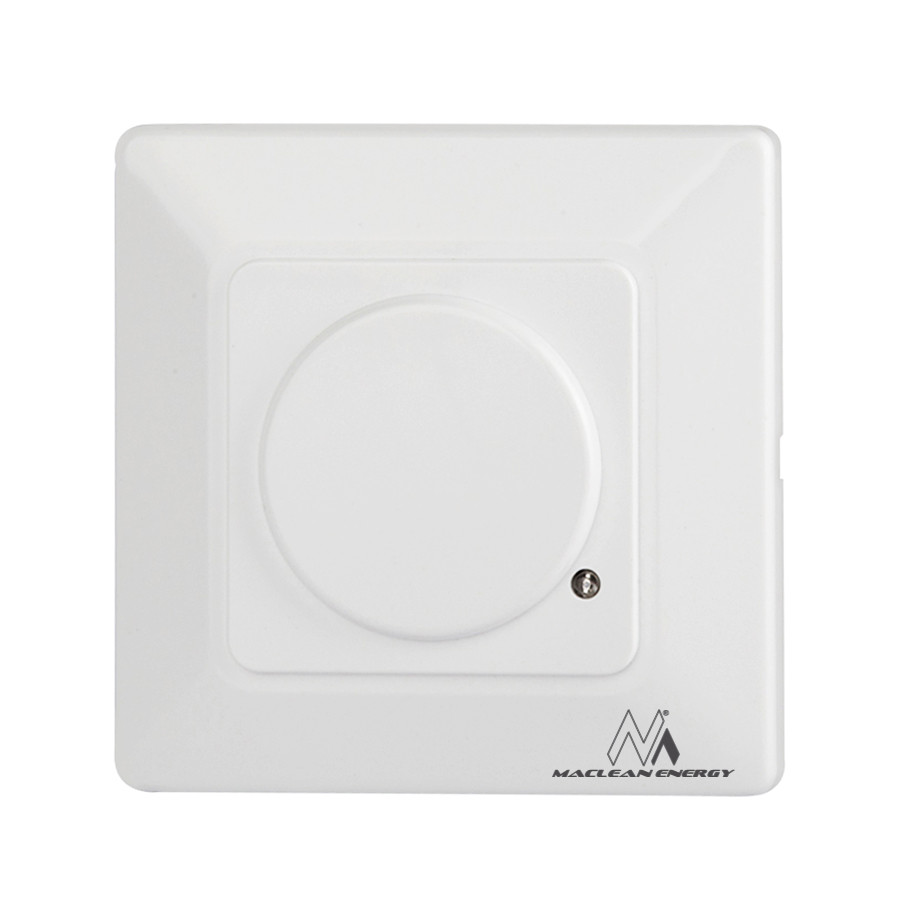

Maclean MCE132 Microwave Motion Sensor for Junction Box, 1200W, 5–15m

The Maclean MCE132 is a microwave motion sensor designed for flush-mounting box installation to provide automatic lighting control in stairwells, corridors, basements, garages, and other indoor or outdoor spaces.

Microwave Detection Technology

Operating at a frequency of 5.8 GHz, this active detector features low power emission (< 0.2 mW) and reliably senses movement both toward and away from the unit. Its microwave capability also allows concealed installation behind doors, decorative panels, glass elements, or thin walls.

Control and Compatibility

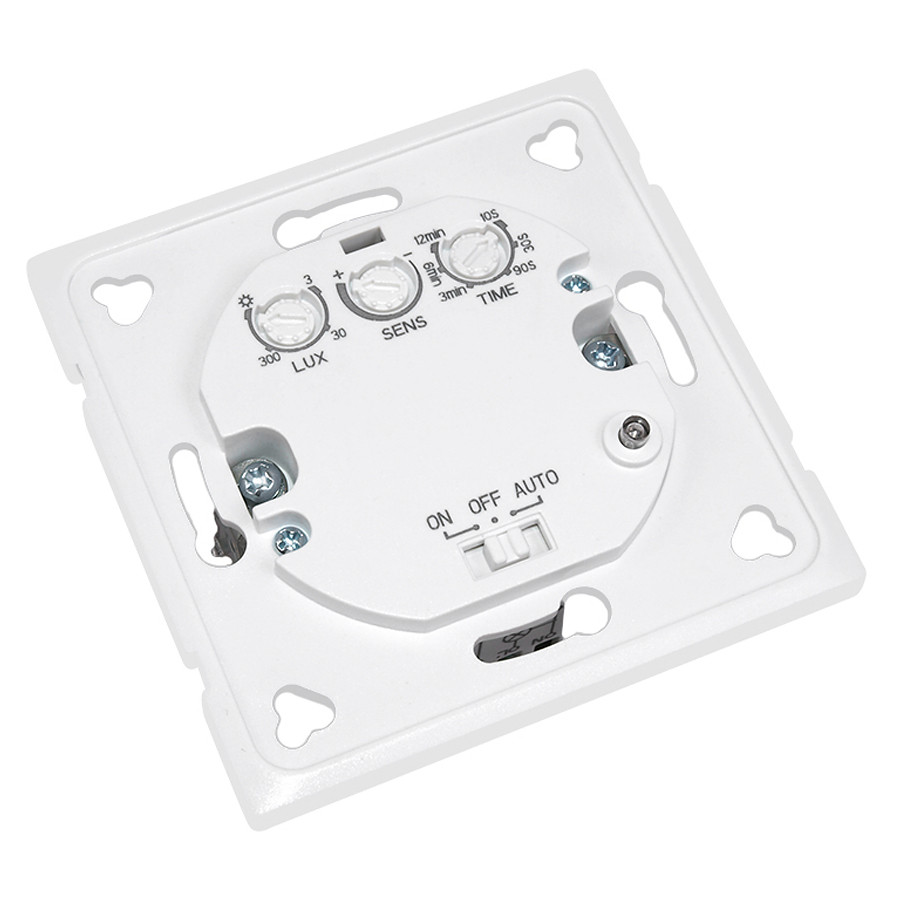

Compatible with LED lighting and rated for loads up to 1200W, the sensor includes an integrated twilight sensor adjustable between 3 and 2000 LUX. Operating time delay can be configured from 10 seconds up to 12 minutes.

Maximum load	1200 W
Supply voltage	220–240 V AC
Power frequency	50 Hz
Operating frequency	5.8 GHz
Detection range	5–15 m
Detection angle	180°
Light sensor threshold	3–2000 LUX (adjustable)
Hold time	min. 10 s ± 3 s, max. 12 min ± 60 s
Power emission	< 0.2 mW
LED lighting compatibility	Yes
