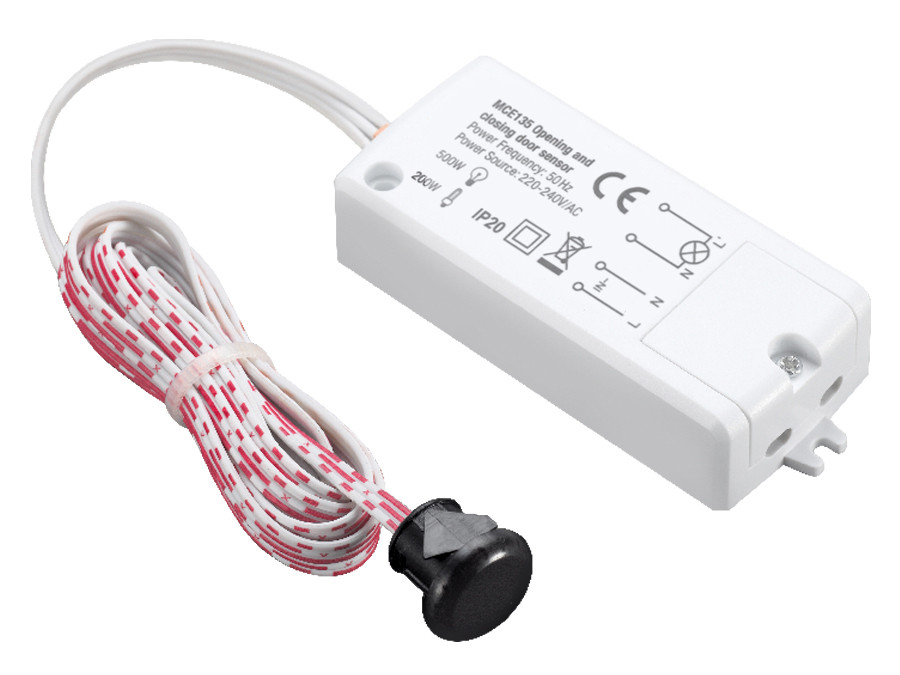

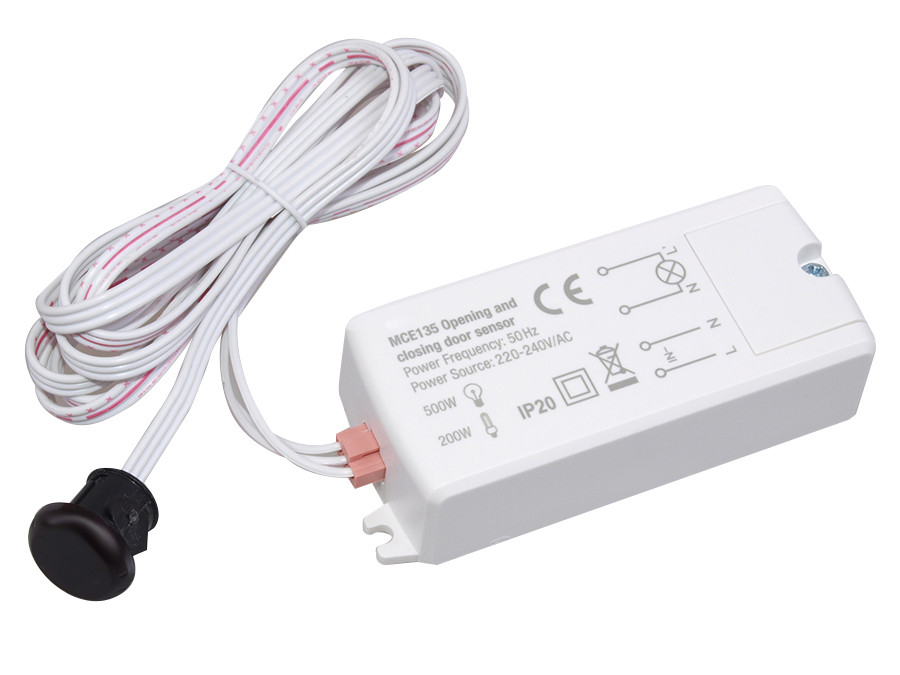

Door PIR Infrared Motion Sensor Maclean MCE135, On/Off, Range 5-6 cm, Max 500W

Door PIR Infrared Motion Sensor Maclean MCE135, On/Off, Range 5-6 cm, Max 500W — image 3

Door PIR Infrared Motion Sensor Maclean MCE135, On/Off, Range 5-6 cm, Max 500W — image 4

Door PIR Infrared Motion Sensor Maclean MCE135, On/Off, Range 5-6 cm, Max 500W — image 5

Price: 11.50 €

Products ID:	194612
Manufactured by:	Maclean
Availablity:	Ready to Order
Delivery Time	5-15 business days
EAN:	5902211102199

Delivery options to:

Choose country

The Maclean MCE135 is a short-distance PIR infrared motion sensor designed for automatic lighting control triggered by the opening and closing of doors. When the door opens, the sensor detects movement and turns on the light, keeping it illuminated as long as the door remains open, and switching it off when the door closes.

Operation and Application

This switch is suitable for wardrobes, cabinets, and other locations where temporary lighting is required.

Light turns on when the door is opened wider than 5 cm.
Light turns off when the door is closed or open less than 5 cm.
To improve sensitivity, a silver sticker can be attached to the door surface facing the sensor.
Compatible with LED lighting, incandescent bulbs, and energy-saving bulbs.

Power source	110-240V/AC
Mains frequency	50/60Hz
Rated current	5A
Detection distance	5-6cm
Operating temperature	-20~+50°C
Compatible with LED lighting	Yes
Max load for incandescent bulb (220-240V/AC)	500W
Max load for incandescent bulb (110-130V/AC)	300W
Max load for energy saving bulb (220-240V/AC)	200W
Max load for energy saving bulb (110-130V/AC)	100W
Ingress protection	IP20
Warranty	2 years
Sensor cable length	1.5 meters
