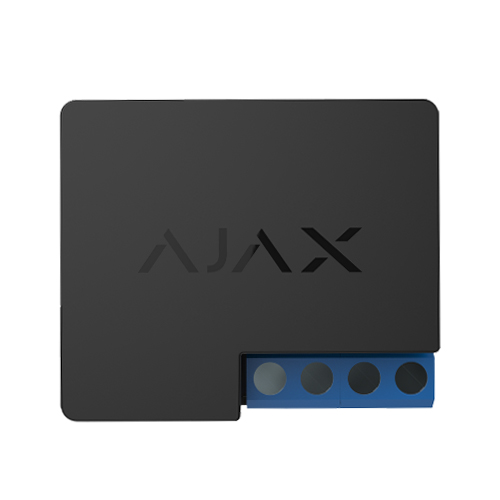

Ajax Dry Contact Relay — wireless relay with dry contact

Dry contact relay
A wireless relay with a voltage-free dry contact that turns appliances and devices on and off, powered by a 7-24 V DC source. Can imitate a button or a switch.

Maximum performance:
Works up to 1,000 meters from Ajax Hub in open space or across several floors of a business center.
Allows for remotely switching connected devices on and off through the app or a browser. Has a pulse equipment control function.

Protection from intruders and failure:
Protected from power surges and overheating. Response from the relay can be checked every 12-300 seconds.

Effortless operation:
Uses a remote antenna for better reception. Operating voltage range: 7-24V. Remembers settings after power failure.

Simple professional-level installation:
Installed inside the connection boxes, electric service panels, or the housings of electric switchboards.

Technical specification:
Color: Black
Use: Indoor
Actuator: Electromagnetic relay
Service life of the relay: 200,000 switchings
Supply voltage range: 7-24 V (DC only)
Voltage protection: Yes, min - 6.5 V, max - 36.5 V
Maximum load current: 5 A at 36 V DC, 13 A at 230 V AC
Maximum current protection: No
Max. temperature protection: Yes, over 65°C (+145°F) at the place of installation or over 85°C (+185°F) inside the Relay.
Output power: (resistance load 230 V): Up to 3 kW
Parameter control: Yes (voltage)
Power consumption: Less than 1 Wh
Communication protocol: Jeweller (868.0-868.6 MHz)
Radio signal power: 25 mW
Modulation: GFSK
Maximum distance between the device and the Hub: 1,000 m (any obstacles absent)
Radio signal power: 25 mW
Shell protection rating: IP20
Operation temperature range: From 0°C (+32°F) to +64°C (+147.2°F) (ambient).
Operating humidity: Up to 75%
Dimensions: 38x25x18 mm (1.49x0.98x0.70 in)
Weight: 32 g

Components:
Relay
Manual
Double-sided adhesive tape
