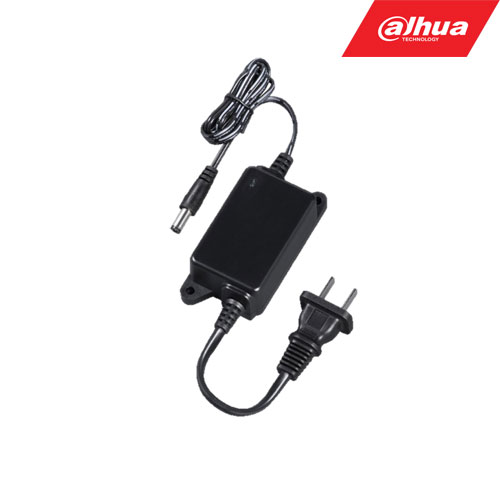

Power supply 12V 1A 12W with plug

Price: 11.70 €

Products ID:	170793
Manufactured by:	Dahua Technology Co., Ltd
Availablity:	Ready to Order
Delivery Time	5-10 business days
EAN:	6939554931024

Delivery options to:

Choose country

A compact power supply unit with an integrated plug designed for stable 12V DC power delivery.

Key Features

Input specifications: 100~240V, 50/60Hz, 0.5A
Output parameters: 12V, 1A (12W power rating)
Protection features: surge, over-temperature, over-current, and voltage load protection
Standard compliance: ESD (EN61000-4-2) and surge protection (EN61000-4-5)
Operating temperature: -30°C to +70°C (-22°F to +158°F)

Input	100~240V, 50/60Hz, 0.5A
Output Voltage	12V (+7%, -3%)
Output Current	1A (± 2%)
Power	12W
Protection	Surge protection, over temperature protection, over current, voltage load protection
ESD Protection	EN61000-4-2: ± 4kV Contact; ± 8kV Air
Surge Immunity	EN61000-4-5: Common Mode ± 4kV (12 ohms), Differential Mode ± 2kV (2 ohms)
Operating Temperature	-30°C ~ +70°C (-22°F ~ +158°F)

What is the input voltage range for this power adapter?

The power adapter supports an AC input voltage range of 100~240V at 50/60Hz (0.5A).

What protections are built into the power supply?

It includes surge protection, over-temperature protection, over-current protection, voltage load protection, and ESD protection according to EN61000-4-2.

What is the rated output power?

The unit provides a 12V 1A output, delivering up to 12W of power.
